Pareto Chart

A Pareto chart is a foundational quality management tool that combines a descending bar graph with a cumulative percentage line. It operationalizes the 80/20 Pareto principle to help continuous improvement teams separate the vital few factors from the trivial many. By ranking categorical issues by frequency or financial impact along the horizontal axis, the chart establishes an objective hierarchy of operational problems, enabling organizations to allocate root-cause problem-solving resources where interventions yield the greatest systemic performance gains.

0/5 explored
80%152Billing96Late52Wrong40Damage24Missing16Rude12Website8Other38%85%100%12345
Rank the bars
The categories are sorted by count, tallest to shortest. Billing errors lead with 152 complaints; late delivery follows with 96.
Begin the cumulative line
The first bar contributes 152 of 400 complaints, so the cumulative line begins at 38% — not at zero.
Add each category
Every point adds the next bar to the running percentage: 38%, then 62%, then 75%, then 85%.
Find the vital few
The line crosses the 80% reference at the fourth category. Four of eight categories account for 85% of all complaints.
Keep Other last
The catch-all Other category stays last even when its count would otherwise change the ranking. That keeps the chart interpretable.

Key facts

Core principle
Pareto principle (80/20 rule)
Primary vertical axis
Frequency, defect volume, or monetary cost
Secondary vertical axis
Cumulative percentage (0% to 100%)
Horizontal axis ordering
Descending order with 'Other' on far right
DMAIC phases
Measure and Analyze

By Matthew Savas — Founder of Kaizumi. Reviewed 17 August 2026.

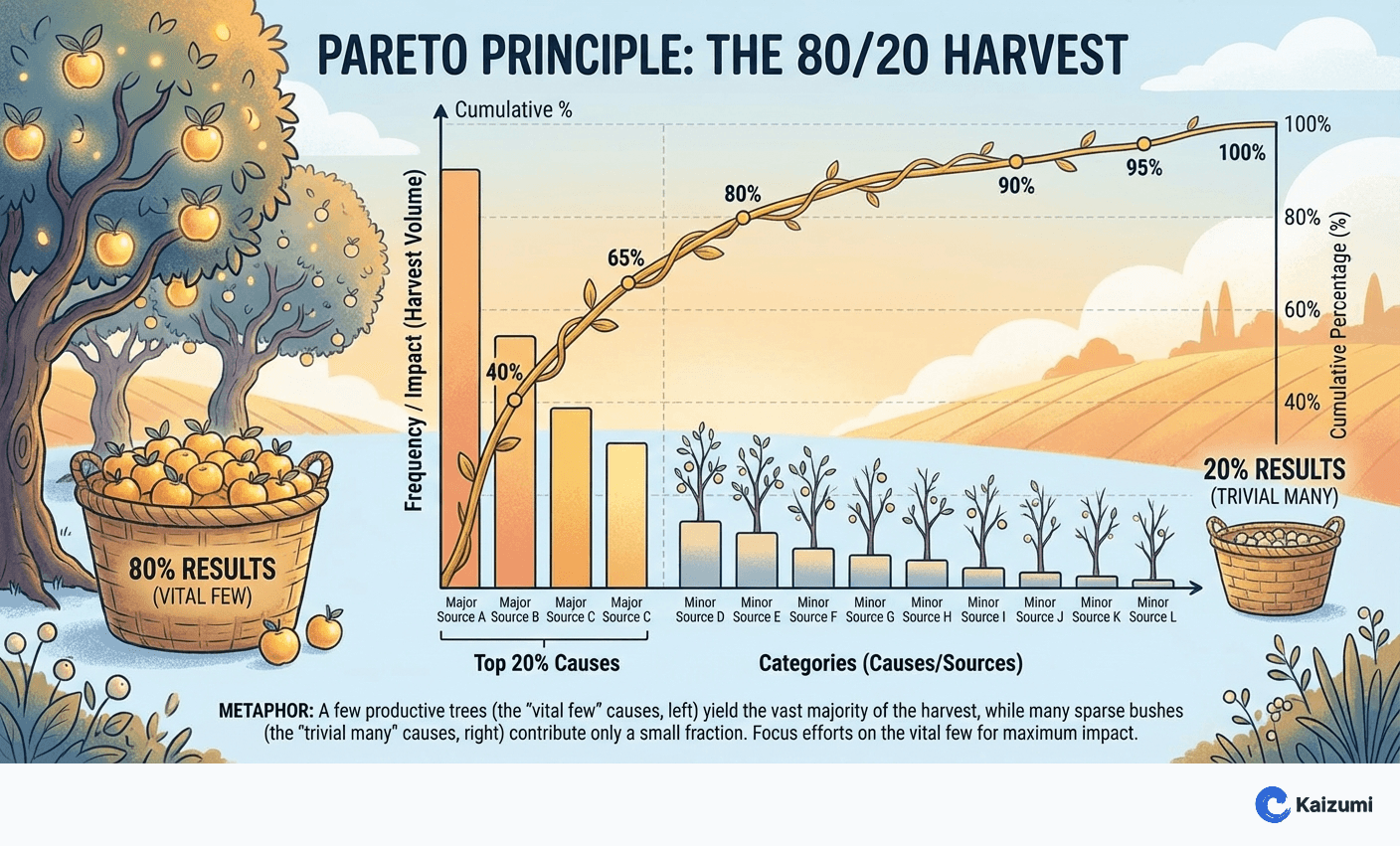

A Pareto chart is a quality management tool containing both bars and a line graph, where individual values are represented in descending order by bars, and the cumulative total is represented by the line. It is used to distinguish the vital few factors from the trivial many. As one of The seven quality tools, it operationalizes the Pareto principle, commonly referred to as the 80/20 rule, which posits that in many operational systems, approximately 80% of problems or effects stem from approximately 20% of causes. By organizing categorical data according to frequency or economic impact, the chart establishes an objective hierarchy of issues, enabling continuous improvement teams to concentrate resources where interventions yield the largest systemic gain.

Structural components and construction rules

A standard Pareto chart incorporates five core mathematical and structural elements:

  1. Primary vertical axis (frequencies): The left vertical scale measures individual event counts, defect volumes, or monetary costs. The maximum value of the primary axis must equal the total sum of all categories combined.
  2. Horizontal axis (categories): The baseline displays discrete, mutually exclusive categorical factors arranged strictly in descending order from left to right. An exception applies to the aggregate category labeled "Other," which is always placed on the far right regardless of its absolute count.
  3. Secondary vertical axis (percentages): The right vertical scale measures cumulative proportions, scaled strictly from 0% to 100%.
  4. Cumulative percentage curve: A continuous line graph plotted across the categories. The first point on this line represents the individual percentage contribution of the largest category, and each subsequent point adds the share of the next category, culminating at exactly 100% on the final category.
  5. Threshold reference line: A horizontal baseline, typically placed at the 80% mark, used to identify the cutoff where the cumulative line crosses major impact thresholds.

Maintaining precise visual calibration between the primary and secondary vertical axes is essential for correct interpretation. The maximum value of the primary axis must equal the total sum of all categories, and the secondary axis must terminate at exactly 100%. If charting software auto-scales the percentage axis above 100% (such as to 120%), the true proportional relationship is skewed, causing reference thresholds to display at inaccurate heights relative to the bars. Analysts can generate properly calibrated charts using a dedicated Pareto chart maker or a standardized Pareto chart template (Excel).

Comparison with other statistical tools

Within statistical quality control, the Pareto chart serves a distinct diagnostic role compared to related graphical methods:

  • A histogram visualizes the frequency distribution of continuous numerical data partitioned into equal measurement bins. In contrast, a Pareto chart visualizes discrete categorical variables arranged in rank order.
  • A run chart tracks process performance over time to detect shifts, trends, or cyclical patterns in sequential order. A Pareto chart aggregates data across an entire observation period, removing the temporal sequence to highlight aggregate magnitude.
  • A control chart incorporates statistically calculated control limits to evaluate process stability and distinguish common cause variation from special cause variation. A Pareto chart does not establish statistical stability; it stratifies the assignable causes once they are identified.

Worked example: customer complaint frequency

Consider a logistics organization analyzing customer service failures over a one-quarter evaluation window. The dataset comprises 400 complaints categorized across 8 distinct defect classifications.

To construct the chart, calculate the individual and cumulative percentages:

  1. Billing error: 152 complaints. Divide 152 by 400 to obtain 38% of total volume.
  2. Late delivery: 96 complaints. Divide 96 by 400 to obtain 24%. Adding late deliveries brings the cumulative share to 62%.
  3. Wrong item: 52 complaints. Divide 52 by 400 to obtain 13%. Adding wrong items brings the running total to 75%.
  4. Damaged in transit: 40 complaints. Divide 40 by 400 to obtain 10%. Adding damaged shipments brings the total to 85%.
  5. Packaging defect: 24 complaints (6% individual, 91% cumulative).
  6. Incorrect documentation: 16 complaints (4% individual, 95% cumulative).
  7. Customer portal bug: 12 complaints (3% individual, 98% cumulative).
  8. Other: 8 complaints (2% individual, 100% cumulative).

In this dataset, the largest single cause is billing error with 152 complaints (38%). To cross the standard 80% reference threshold, 4 of the 8 categories (50% of the categories) are required, encompassing 85% of all complaints. This demonstrates a 50/85 distribution rather than an exact 80/20 ratio. Empirical operational distributions frequently deviate from the theoretical ratio, displaying patterns such as 60/80, 20/90, or 50/85 depending on underlying process characteristics.

Frequency versus financial weighting

Relying solely on event frequency can distort operational priorities when the financial consequence per defect varies significantly across categories. A high-frequency defect with negligible remediation cost may absorb organizational effort while a low-frequency defect with severe financial impact remains unaddressed. A weighted Pareto analysis replaces raw counts on the primary vertical axis with total financial loss, calculated by multiplying defect frequency by the unit cost of resolution. The methodology for establishing these unit costs is detailed in Where a defect's cost is set.

Applying financial weighting to the previous dataset of 400 complaints illustrates this divergence across a total baseline expenditure of 20,000 dollars:

  • Damaged in transit: 40 occurrences at 160 dollars per occurrence equals 6,400 dollars (32.0% of total financial loss).
  • Wrong item: 52 occurrences at 100 dollars per occurrence equals 5,200 dollars (26.0% of total financial loss).
  • Late delivery: 96 occurrences at 43.75 dollars per occurrence equals 4,200 dollars (21.0% of total financial loss).
  • Billing error: 152 occurrences at 15 dollars per occurrence equals 2,280 dollars (11.4% of total financial loss).
  • Packaging defect: 24 occurrences at 35 dollars per occurrence equals 840 dollars (4.2% of total financial loss).
  • Customer portal bug: 12 occurrences at 45 dollars per occurrence equals 540 dollars (2.7% of total financial loss).
  • Incorrect documentation: 16 occurrences at 20 dollars per occurrence equals 320 dollars (1.6% of total financial loss).
  • Other: 8 occurrences at 27.50 dollars per occurrence equals 220 dollars (1.1% of total financial loss).

When weighted by cost, the top three financial categories (Damaged in transit, Wrong item, and Late delivery) account for 15,800 dollars, or 79.0% of total financial loss. Billing error drops from first place by count (38% of complaints) to fourth place by cost (2,280 dollars, or 11.4% of total expenses). The weighted analysis redirects engineering and operational resources toward damaged shipments and fulfillment accuracy rather than administrative billing adjustments.

Integration with root cause analysis

A Pareto chart identifies where problem-solving efforts must focus, but it does not reveal why those failures occur. Once the vital few categories are isolated, organizations apply structured root cause analysis methods to investigate the mechanisms generating the defects.

In standard improvement frameworks such as DMAIC, the Pareto chart serves as a primary tool during the Measure and Analyze phases. Teams pair the chart with causal mapping tools:

  • Fishbone diagram: Also known as an Ishikawa or cause-and-effect diagram, this tool categorizes potential failure causes into standardized branches such as machine, method, material, measurement, environment, and people. Teams can design these structures using a digital Fishbone diagram builder.
  • 5 Whys: An iterative interrogative technique used to trace direct linear causal chains by asking why a failure occurred until reaching the underlying breakdown in process design or policy. Practitioners can document this process using a structured 5 Whys worksheet or follow step-by-step methodologies detailed in Five whys, worked end to end.

By isolating the highest-ranking category on the Pareto chart and subjecting it to systematic root-cause investigation, teams prevent the dilution of analytical effort across low-impact failure modes.

Verification and before-and-after analysis

Following the implementation of corrective actions, teams construct a secondary Pareto chart to evaluate intervention efficacy. Comparing baseline and post-intervention charts validates whether the targeted failure mode was reduced and reveals any shifts in remaining failure distributions.

Continuing the logistics example, assume the organization engineered new transit packaging and pallet-securing standards to address transit damage. A follow-up analysis of a subsequent 400-complaint equivalent operating period yields the following results:

  • Total resolution cost drops from 20,000 dollars to 15,360 dollars, a reduction of 4,640 dollars over the same quarter (a 23.2% financial improvement).
  • Damaged in transit drops from 10.0% of total complaints (40 events costing 6,400 dollars) to 2.0% (8 events costing 1,280 dollars), moving to the bottom of the active categories.
  • The cumulative distribution shifts, with the top three categories now accounting for 81.5% of remaining complaints.
  • In financial terms, "Wrong item" becomes the new primary cost driver (5,200 dollars, or 33.9% of remaining costs), establishing the target for the next improvement cycle.

In standardized documentation such as an A3 problem solving report, side-by-side before-and-after Pareto analyses provide quantitative validation of problem resolution and highlight emerging targets for ongoing organizational improvement.

Practical limitations and pitfalls

While mathematically straightforward, Pareto analysis can lead to flawed conclusions if constructed or interpreted without procedural rigor:

  • Small sample instability: Applying Pareto analysis to small sample sizes (such as 20 to 30 total events over a single week) exposes the analysis to random sampling variation. A category appearing as the largest contributor in a small sample may reflect temporary fluctuation rather than systemic process performance.
  • Inappropriate category aggregation: Grouping disparate defect types into broad classifications can artificially elevate a generic category to the top position, obscuring specific root causes. Conversely, overly granular classification can fragment a major problem across multiple minor categories, hiding its aggregate significance.
  • The "Other" category distortion: If the miscellaneous "Other" category contains more items than the largest distinct category, the data classification schema is insufficiently specific. The "Other" group should never be placed in descending order among standard categories; it must remain on the far right of the horizontal axis.
  • Static perspective on dynamic processes: A Pareto chart aggregates historical data over a defined time window. It cannot detect whether a specific failure mode is accelerating, decelerating, or remaining stable over time. Teams should cross-reference Pareto findings with time-series charts to confirm that the observed data represents current operational conditions.

Frequently asked questions

Can categories on a Pareto chart be arranged in ascending order?
No, categories on the horizontal axis must be arranged strictly in descending order from left to right based on frequency or cost. This descending sequence immediately separates the highest-impact issues from the remaining factors. The only exception to this ordering rule is an aggregate Other category, which must always be placed on the far right regardless of its absolute count.
How does a Pareto chart differ from a histogram?
A histogram visualizes continuous numerical data grouped into equal measurement bins to show a frequency distribution. A Pareto chart organizes discrete categorical variables in descending rank order alongside a cumulative percentage line. While a histogram reveals process spread and shape across continuous measurements, a Pareto chart stratifies and ranks distinct categorical problems.
Why should a Pareto chart be weighted by financial loss instead of event frequency?
Relying solely on event frequency can distort operational priorities when the financial impact per defect varies widely across categories. Multiplying defect counts by unit resolution costs reveals the true economic burden of each category. This prevents organizations from misallocating problem-solving resources to high-frequency, low-cost errors while severe, expensive defects remain unaddressed.
Must a Pareto chart exhibit an exact 80/20 distribution?
Real-world operational data rarely conforms to an exact 80/20 ratio. Depending on the process, empirical data frequently produces distributions such as 50/85, 60/80, or 20/90. The 80% mark functions as a practical reference threshold to identify major drivers rather than an unbending mathematical law.
Does a Pareto chart reveal the root causes of process defects?
A Pareto chart identifies which failure categories represent the largest aggregate impact, but it does not reveal why those failures happen. Once the chart isolates the vital few issues, teams must apply causal analysis tools such as the Fishbone diagram or the 5 Whys to investigate the underlying breakdowns. The chart indicates where to direct resources, but structured causal methods are required to eliminate the mechanism causing the defect.
