Root Cause Analysis
Root cause analysis (RCA) is a structured problem-solving methodology that traces operational failures past surface symptoms and direct triggers to their underlying technical or organizational causes. In Lean and continuous improvement systems, RCA shifts quality control from reactive containment to permanent prevention. The operational test of a true root cause is non-recurrence: verified countermeasures prevent the issue from returning. Standard tools like Fishbone diagrams and the 5 Whys isolate latent physical and procedural breakdowns.
- The symptom: a coolant puddle
- A coolant puddle forms under the CNC lathe in machining bay 4. The puddle is the symptom, the part of the problem anyone can see. Mopping removes it in about one hour. Nothing upstream changes, so the puddle is back the next week. Over 12 weeks that is 12 recurrences and 12 hours of cleanup.
- The direct cause: a worn seal
- The coolant pump seal is worn and lets coolant past the shaft. Replacing the seal stops the leak the same day. It is a real repair. It is also the fix that looks finished but is not. A misaligned shaft wears the new seal the same way. The leak returns at week 6 and again at week 12.
- The root cause: a warped mount plate
- The pump's mounting plate is warped, so the shaft runs 0.4 mm off center and grinds every seal it meets. Replacing the plate is the root-cause fix: a technical change to the machine, not a reminder to people. With the shaft running true, the seal lasts and the floor stays dry. The timeline shows zero recurrences in 12 weeks.
- The 12-week recurrence timeline
- Each slab is one week. A crimson slab is a week the leak came back. The recurrence count is the test of a fix. Mopping scores 12, the seal 2, the procedure 0. Each recurrence costs about one hour of cleanup. Over the same 12 weeks the three choices cost 12, 2, and 0 hours.
- Why did the seal wear?
- This is the question that reached the root. A worn seal is a cause, so the investigation asks why it wore. The shaft was running off center. Why? A dial indicator on the pump mount showed the plate warped by 0.4 mm. That answer names a physical condition the team can correct, so the asking stops there.
Key facts
- Core objective
- Permanent prevention of failure recurrence
- Failure layers
- Symptom, direct cause, root cause
- Core investigation tools
- Fishbone diagram, 5 Whys, A3 report
- Standard frameworks
- A3 problem solving, DMAIC, 8D system
- Common verification windows
- 30, 60, or 90 days
By Matthew Savas — Founder of Kaizumi. Reviewed 1 September 2026.

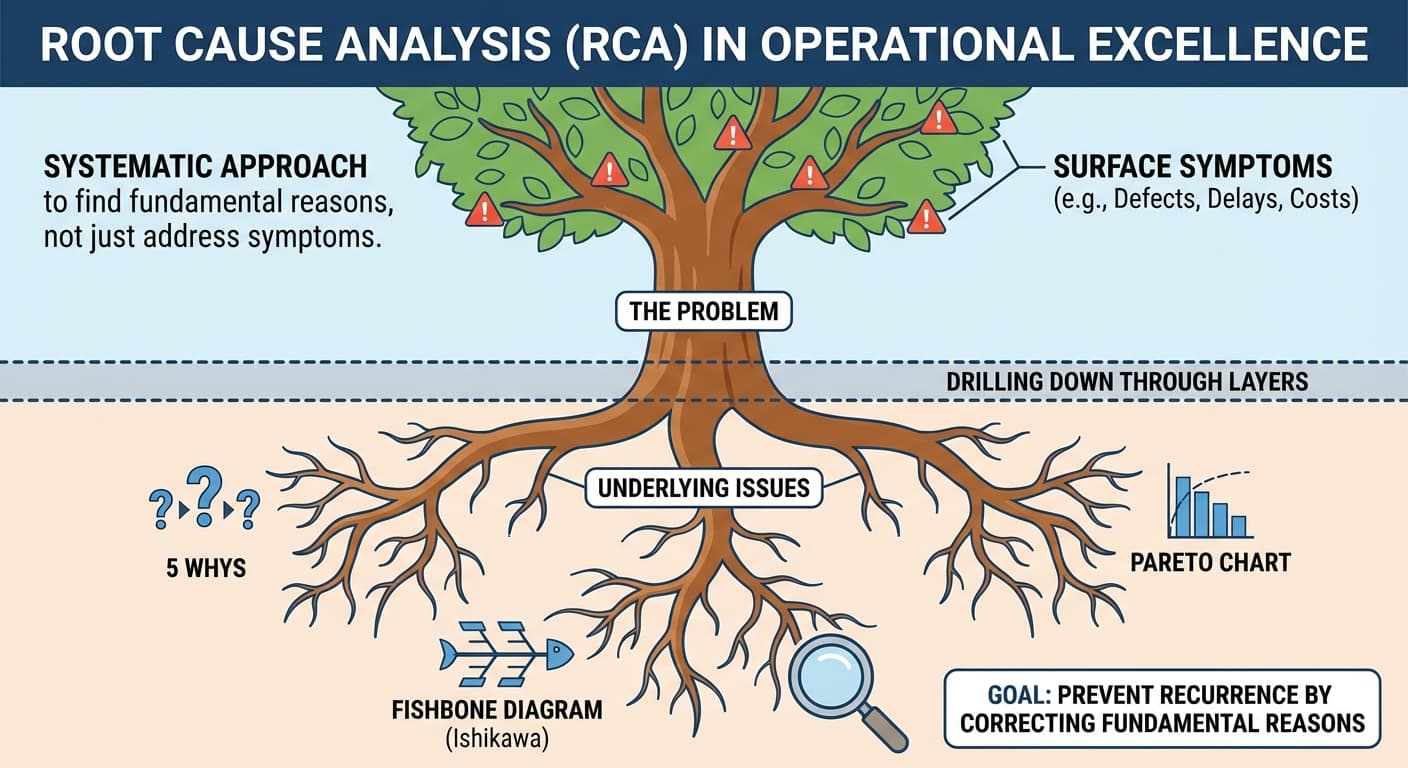

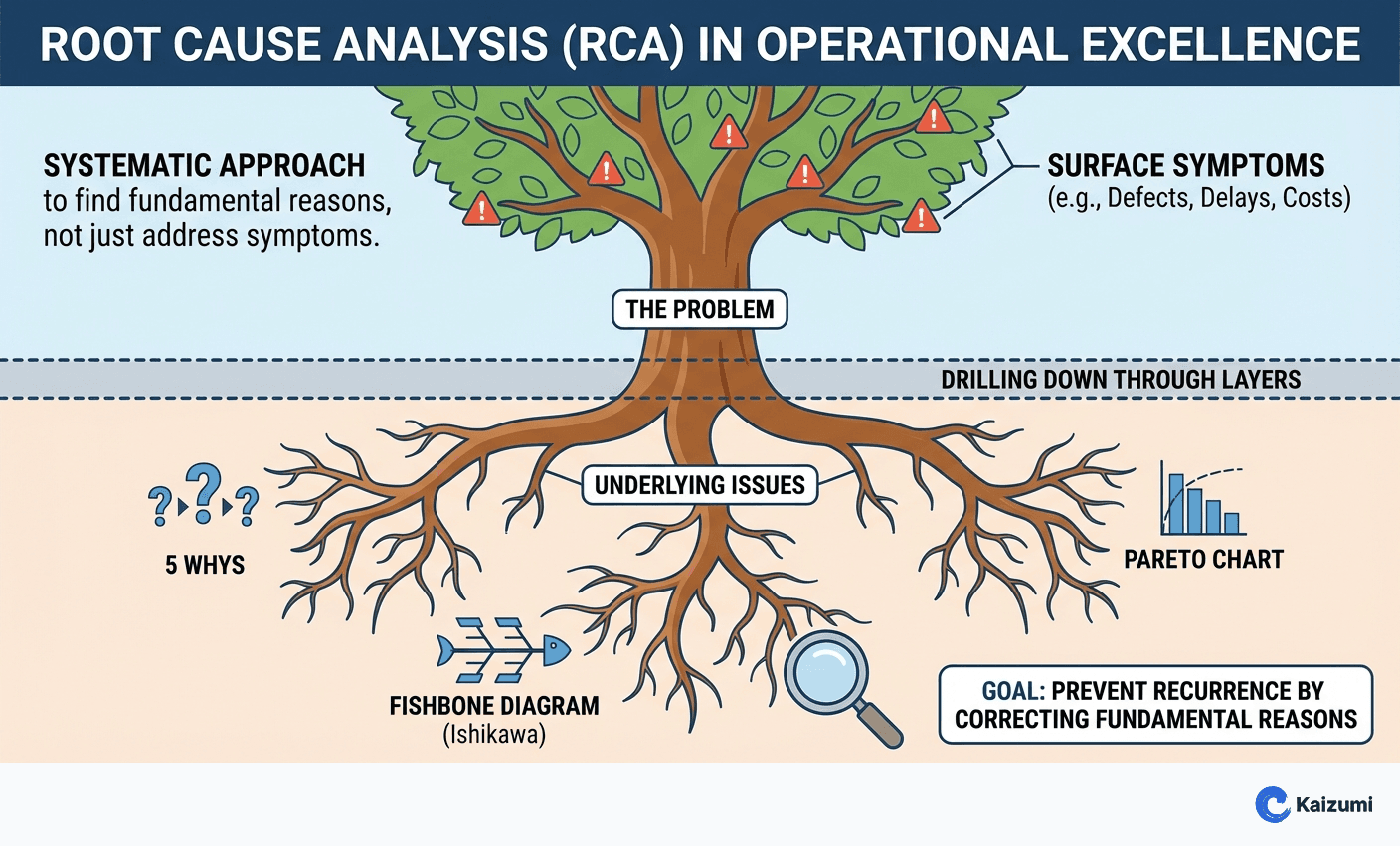

Root cause analysis (RCA) is a structured problem-solving methodology that traces an undesirable operational outcome past its visible symptoms and direct triggers down to the underlying technical, physical, or organizational conditions that allowed the failure to happen. In Lean manufacturing and continuous improvement systems, root cause analysis shifts maintenance and quality control from reactive containment to permanent prevention. The operational test of a true root cause is recurrence: when a root cause is eliminated through a verified countermeasure, the problem stops coming back. Addressing merely the direct trigger or surface symptom leaves the latent system defect intact, guaranteeing that the failure mode will repeat over time.
Symptom, direct cause, and root cause
In industrial problem solving, failures manifest across three distinct layers: the symptom, the direct cause, and the root cause. Distinguishing between these layers determines whether an intervention produces temporary suppression or permanent resolution.
- Symptom: The observable effect or consequence of the failure in the workplace. It requires immediate containment to prevent safety hazards or product nonconformities, but resolving the symptom does nothing to stop the source of the defect.
- Direct cause: The immediate physical mechanism or component failure that generated the symptom. Replacing a failed component addresses the direct cause, but if the operating environment or upstream forces remain flawed, the new component will degrade in the same manner.
- Root cause: The fundamental condition, design omission, or process deficiency that subjected the system to failure. Eliminating this condition permanently stabilizes the process.
The operational reality of these tiers is demonstrated by a common equipment failure: a coolant leak on a CNC lathe in machining bay 4 over a 12-week observation window.
| Intervention Level | Action Taken | 12-Week Outcome | Total Recurrences |
|---|---|---|---|
| Symptom containment | Mop the floor beneath the machine | Repeated 12 times; 12 hours of labor expended; leak persists daily | 12 recurrences |
| Direct cause repair | Replace the worn pump seal | Seal fails at week 6 and week 12; 2 hours of cleanup + 2 seals + 2 technician calls | 2 recurrences |
| Root cause elimination | Realign pump and replace warped mounting plate | Shaft runs true; zero seal degradation; dry floor | 0 recurrences |
When maintenance teams responded only to the puddle (the symptom), the floor had to be mopped once a week for 12 weeks. Over 12 weeks, that response was repeated 12 times, at a cost of 12 hours of cleanup and no progress. The coolant leak cost one hour a week of cleanup, two pump seals, two repair visits, a wet floor near a lathe, and 12 weeks of a supervisor's attention.
When technicians replaced the leaking pump seal (the direct cause), the new seal failed at week 6, and its replacement failed at week 12. The recurrence at week 6 is the evidence that replacing the seal did not resolve the problem. The pump shaft was slightly misaligned and continued to wear every seal the same way. Over 12 weeks the leak recurred twice and cost two hours of cleanup, plus two seals and two repair visits.
A structured investigation using a dial indicator on the pump mount revealed the root cause: the mounting plate was warped by 0.4 mm. This slight deflection forced the pump shaft to run off-center, grinding every seal fitted to it until fluid escaped. With the plate replaced and the shaft running true, the seal lasted, the floor stayed dry, and the 12-week timeline showed zero recurrences.
The process of root cause analysis
Most formal problem-solving frameworks, such as A3 problem solving, DMAIC (Define, Measure, Analyze, Improve, Control), and the Eight Disciplines (8D) system used across the automotive sector, follow a standardized sequence to isolate root causes.
1. Formulate a precise problem statement
An investigation must begin with an objective, quantified description of the failure rather than an assumption or premature diagnosis. A problem statement defines what is failing, where it is occurring, the magnitude of the deviation, and the timeframe.
- Ineffective: "Lathe 4 pump is broken."
- Effective: "Coolant puddle under lathe 4 every week for the past month."
2. Implement interim containment
While the root cause is investigated, teams must establish protective measures to isolate customers and operators from the symptom. Containment must be recognized as an added operational cost, not a permanent fix.
3. Map potential failure modes
Before converging on a single theory, investigators map all plausible contributing factors across operational dimensions such as machinery, personnel, methods, materials, measurement, and environment.
4. Trace the causal mechanism
Investigators follow candidate branches down to the root mechanism. The 5 Whys technique structures this as a single chain; a fishbone diagram lays out candidate causes across categories before a chain is chosen.
5. Develop and implement countermeasures
A robust corrective action alters the design, machine condition, or standard operating procedure so that the failure mode cannot recur. Countermeasures target the mechanism identified at the base of the causal chain.
6. Verify non-recurrence and standardize
The process must be tracked over an extended operating window (e.g., 30, 60, or 90 days). If the failure mode recurs, the root cause was incorrectly identified or only partially addressed, requiring the team to reopen the causal chain. Once proven, the changes are codified into standard work instructions.
Tools used in root cause analysis
Root cause investigations rely on visual, team-based tools that clarify complex mechanical and procedural interactions.
Fishbone (Ishikawa) diagram
A fishbone diagram organizes brainstorming by grouping potential failure causes into six standard categories: Machine, Method, Material, Manpower, Measurement, and Milieu (Environment). It prevents teams from fixating prematurely on a single suspect (such as operator error). Lay out candidate causes across the six categories, then work one branch down with a 5 Whys chain to separate symptoms from root causes.
Try it yourself
Teams can configure structured causal trees directly using an interactive Fishbone diagram maker during cross-functional gemba walks.
The 5 Whys methodology
The 5 Whys method drills vertically down a single causal path by repeatedly asking why an event occurred. Each answer forms the basis of the subsequent question, stripping away intermediate symptoms until an actionable root cause is reached. Once the map points at one candidate cause, work it down a single chain with the 5 Whys builder or a dedicated 5 Whys worksheet.
The A3 report
An A3 report is a one-page record of the problem, the analysis, the countermeasure, and the follow-up, used to keep the investigation on one sheet. Developed within the Toyota Production System, the A3 format forces brevity and cross-functional alignment by presenting the background, current state, root cause analysis, target state, implementation plan, and confirmation metrics on an 11-by-17-inch canvas.
Technical versus procedural root causes
Root causes in manufacturing environments typically split into two linked domains: physical/technical mechanisms and procedural/systemic breakdowns. A complete investigation identifies both.
Consider an automated welding cell producing intermittent weld porosity:
In this case, a 5 Whys chain found the weld parameters were incorrect, the settings drifted during the shift, no indicator showed the parameter state, and the machine had no parameter lock because the original design omitted it.
The physical root cause is the potentiometer's mechanical drift under vibration. The systemic root cause is an equipment design and procurement standard that allowed critical process parameter controls to remain unlocked and unmonitored during production. Addressing only the physical drift (e.g., taping down the knob) leaves the system vulnerable to identical omissions on other machines. Correcting the equipment design standard protects all production lines against parameter tampering and drift.
Common pitfalls in root cause analysis
Root cause investigations can fail when teams take analytical shortcuts or misinterpret the data:
- Stopping at "operator error": Blaming human fallibility halts the investigation at the symptom level. If a process allows a human slip to cause a critical failure, the root cause lies in inadequate mistake-proofing (poka-yoke), ambiguous work instructions, or poor ergonomic design.
- Confusing correlation with causation: Two events occurring together does not prove one caused the other. Hypothesized root causes must be verified by physically replicating the failure mode or demonstrating that removing the variable eliminates the defect.
- Isolating single causes in complex systems: Severe disruptions frequently stem from multiple interacting conditions rather than a single broken part. Investigations should check for multiple root causes across different branches of the system.
- Treating containment as resolution: Keeping temporary measures (such as extra visual inspection stations or rework shifts) active indefinitely masks the underlying defect and inflates operating costs without improving underlying process capability.
Frequently asked questions
- What is the difference between a direct cause and a root cause?
- A direct cause is the immediate physical mechanism or component breakdown that triggers an operational failure, such as a worn pump seal. A root cause is the underlying design flaw, environmental factor, or procedural breakdown that created the conditions for that component to fail, such as a warped mounting plate misaligning a shaft. Addressing only the direct cause leaves the process vulnerable to repeat breakdowns because the underlying defect remains active.
- Why should a root cause analysis avoid concluding that human error is the cause?
- Blaming operator error halts an investigation at the symptom level without identifying why the system permitted the mistake to occur. An effective investigation treats human slips as evidence of flawed process design, such as ambiguous work instructions, poor ergonomics, or an absence of poka-yoke mistake-proofing. Correcting the process design prevents the failure mode from recurring regardless of who operates the workstation.
- How do technical root causes differ from procedural root causes?
- A technical root cause is a physical mechanism that fails during operation, such as machine settings drifting out of tolerance due to vibration. A procedural root cause is a systemic organizational gap, such as equipment procurement standards that allow machines to enter production without parameter locks. A complete investigation resolves both to fix the immediate equipment and protect future installations from the same vulnerability.
- How are fishbone diagrams and the 5 Whys used together during an investigation?
- A fishbone diagram organizes brainstorming across six categories—Machine, Method, Material, Manpower, Measurement, and Milieu—to map all potential contributing factors without premature bias. Once plausible candidate branches are established, investigators use the 5 Whys to drill vertically down an individual branch to reach the actionable root mechanism. This combination ensures wide exploration across the system before deep causal tracing begins.
- What is the role of interim containment in root cause analysis?
- Interim containment isolates customers and operators from immediate defects while the analytical investigation proceeds. Relying on containment measures as ongoing fixes inflates operating costs through unnecessary inspections or rework shifts without fixing the underlying defect. Containment should always be treated as a temporary expense that is decommissioned once permanent countermeasures are validated.
