DMAIC

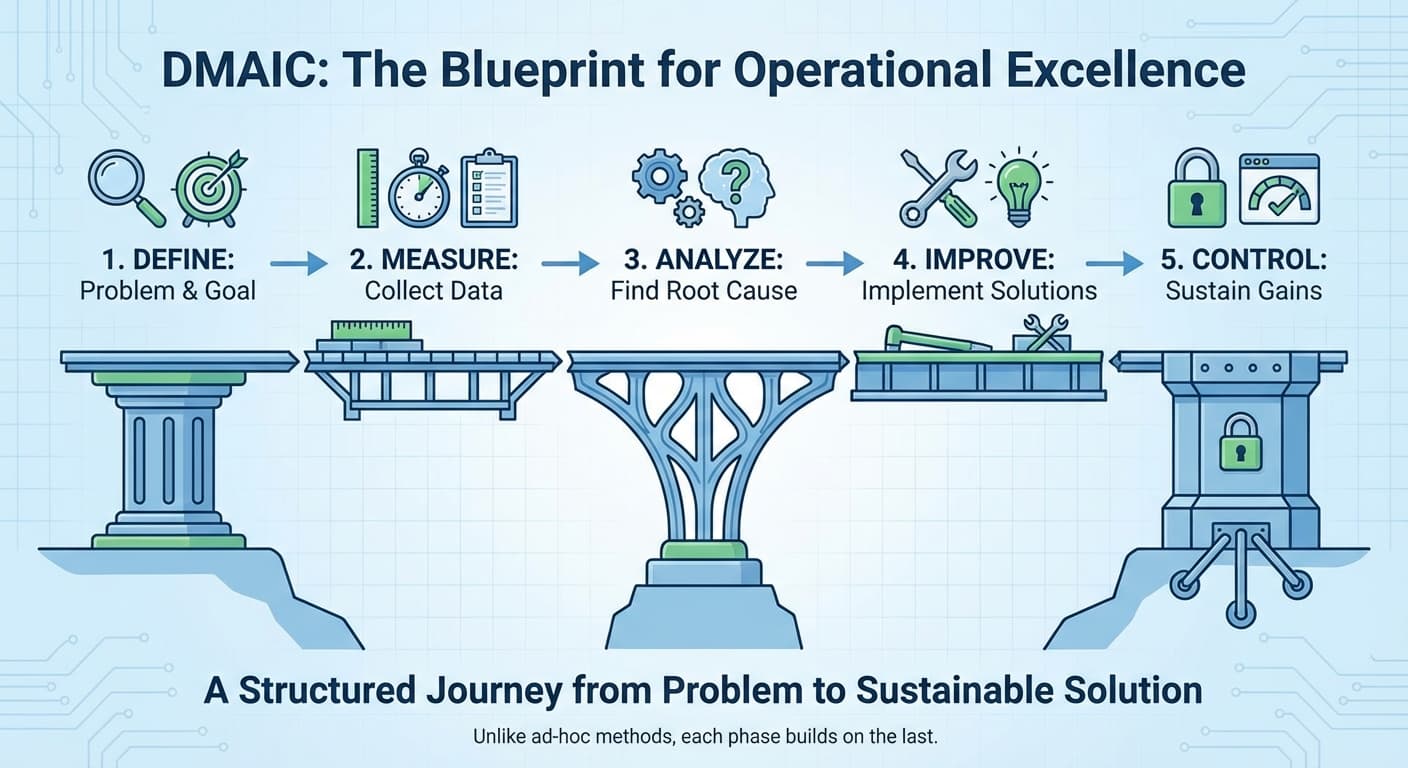

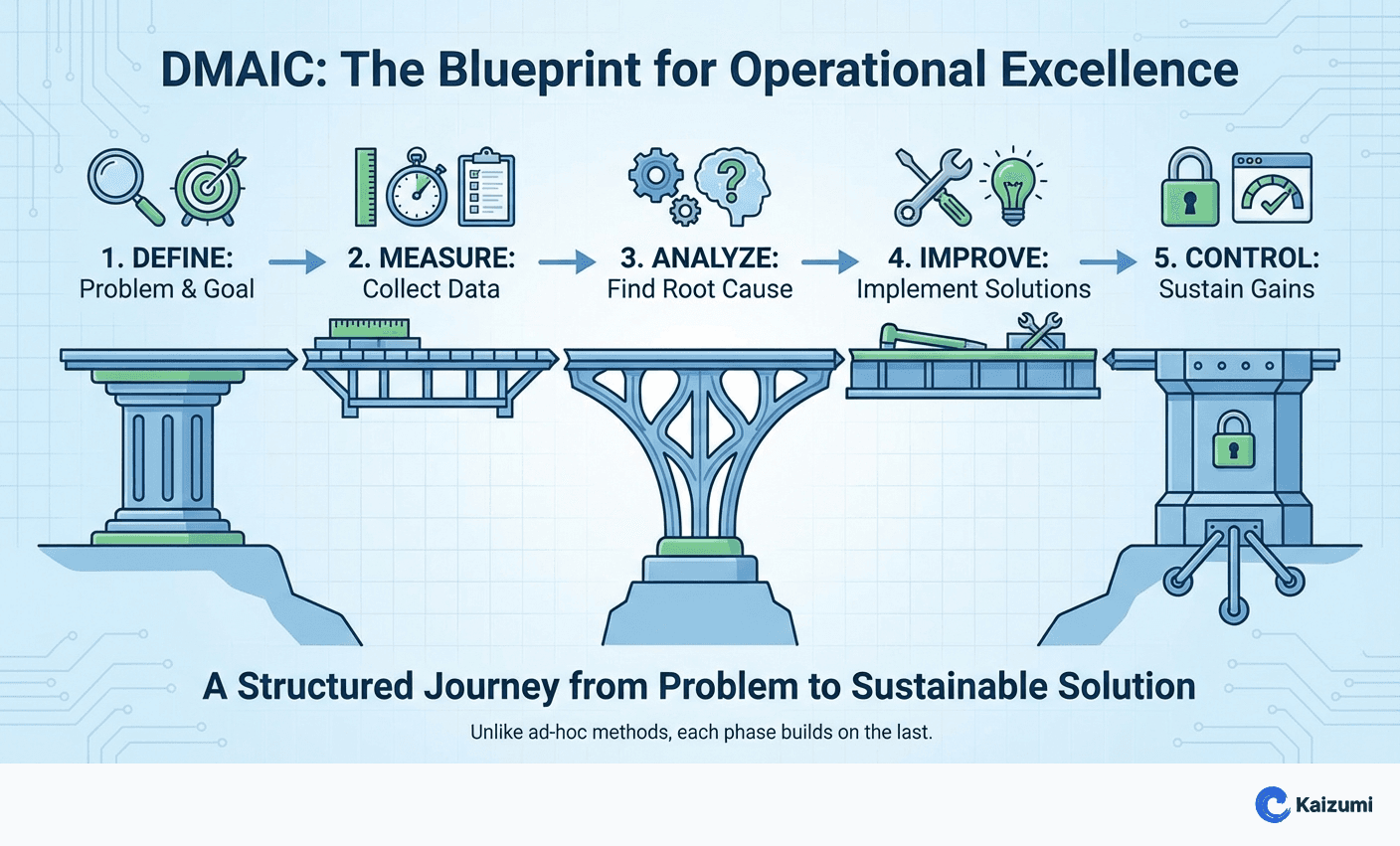

DMAIC (Define, Measure, Analyze, Improve, and Control) is a five-phase, data-driven problem-solving methodology central to Six Sigma. Originating at Motorola and popularized by General Electric, it provides a structured roadmap to eliminate operational defects and reduce process variation in existing processes. Rather than relying on intuition, DMAIC requires empirical evidence at each stage, using statistical tools, root-cause analysis, and mistake-proofing to implement sustainable solutions. Certified Green and Black Belts typically execute projects over two to six months under champion oversight.
- Define: the charter
- The team writes a charter that states the problem, the scope, and the goal: the V-220 line is producing about 20 bent connector pins for every 1,000 connectors made, a defect rate of 2%; the project covers pin insertion at station 3 only; the goal is 5 bent pins per 1,000 connectors or fewer within twelve weeks. A champion from management signs it.
- Measure: the baseline
- Six weeks of inspection records give weekly rates of 18, 23, 19, 24, 20, and 22 bent pins per 1,000 connectors, an average of 21. Every point on this line is that defect count. A gage study confirms two inspectors classify the same pins the same way. Without a trusted baseline, no later improvement can be proven.
- Analyze: the root cause
- A Pareto of 200 defective connectors ranks the causes: 62% inserted in the wrong orientation, 24% from a worn guide rail, 14% other. The team had assumed new operators were the cause; the data shows orientation errors from everyone. The line stays flat here because nothing has changed yet.
- Improve: the change
- A keyed insertion fixture makes the wrong orientation physically impossible, and the worn rail is replaced the same week. In the pilot week the rate steps from about 20 to 3 bent pins per 1,000 connectors. One change, one step, measured the same way as the baseline.
- Control: making it hold
- A control chart is handed to the station owner with a center line at 3 and an upper control limit of 6 bent pins per 1,000 connectors, a response plan names what to do when a point crosses it, and the fixture is written into the standard work. The next five weeks read 3, 2, 4, 3, and 3 bent pins per 1,000. This is the phase most projects skip, and the reason their gains fade.
Key facts
- Five Phases
- Define, Measure, Analyze, Improve, Control
- Origin
- Motorola (late 1980s)
- Typical Project Duration
- 2 to 6 months
- Core Practitioners
- Green Belts and Black Belts
- Primary Purpose
- Defect and process variation reduction
- Governance Mechanism
- Phase tollgate reviews
By Matthew Savas — Founder of Kaizumi. Reviewed 1 September 2026.
DMAIC (Define, Measure, Analyze, Improve, and Control) is the structured, five-phase problem-solving methodology at the core of Six Sigma. The framework provides teams with a data-driven roadmap to identify operational defects, isolate underlying root causes, implement sustainable solutions, and verify long-term performance gains. Rather than relying on intuition or anecdotal assumptions, DMAIC requires each phase to produce verifiable empirical evidence before moving to the next. The method functions as a rigorous evolution of the classic PDCA (Plan-Do-Check-Act) cycle, engineered specifically to eliminate process variation and eliminate defects in complex operational environments.
Origins and development
DMAIC originated at Motorola in the late 1980s as engineers sought a standardized framework to reduce defects in semiconductor and communications equipment manufacturing. The methodology gained widespread prominence in the mid-1990s when General Electric adopted Six Sigma as a core corporate strategy under Chief Executive Officer Jack Welch. GE deployed DMAIC across manufacturing, financial services, engineering, and supply chain operations, demonstrating that structured statistical problem-solving could generate substantial bottom-line savings across non-industrial workflows.
Within standard Six Sigma governance, DMAIC serves as the core operational roadmap executed by certified Green Belts and Black Belts. Projects are overseen by a project sponsor or champion, who ensures strategic alignment, allocates operational resources, and conducts formal tollgate reviews at the conclusion of each phase to validate project milestones.
The five phases in practice
The sequential nature of DMAIC prevents teams from jumping to premature conclusions. Each phase answers specific operational questions using distinct analytical tools. To understand how these phases function in practice, consider a representative industrial case study: an assembly team addressing bent connector pins on a manufacturing line designated the V220.
Define
The Define phase establishes the boundary, purpose, and financial justification for the project. The team identifies the process to be improved, the critical customer requirements, and the specific defect definition. The primary deliverable is a formal project charter outlining the business case, problem statement, objective, scope constraints, and team roles.
In the V220 case, the team identifies that bent connector pins occur at a rate of approximately 20 per 1,000 connectors. Rather than attempting to overhaul the entire assembly facility, the charter defines the scope exclusively as the pin insertion step at assembly station 3, setting a performance target of 5 or fewer defects per 1,000 connectors within 12 weeks.
Measure
The Measure phase establishes an empirical baseline of current process performance and validates the measurement systems used to collect data. Before analyzing historical or live process outputs, teams verify that the measurement instruments and human inspectors do not introduce unacceptable variation. Tools used in this phase include process maps, data collection plans, and line-balancing analyses using tools such as a Free Yamazumi builder.
The V220 project undertakes a Gage R&R (Gage Repeatability and Reproducibility) study, verifying that different inspection operators evaluate identical pins consistently without introducing operator bias into the defect counts. Once the measurement system is validated, six weeks of historical baseline data reveal weekly defect rates of 18, 23, 19, 24, 20, and 22 per 1,000 connectors, yielding an established baseline average of 21 per 1,000.
Analyze
The Analyze phase isolates the verified root causes of process variation and defects. Teams formulate hypotheses regarding potential input variables ($X$) that drive process defects ($Y$), then test those hypotheses using statistical modeling, comparative trials, and graphical stratification methods like a Pareto chart (often generated with a specialized Pareto chart maker).
In the V220 project, the initial assumption held that operator inexperience caused the bent pins. However, systematic data analysis revealed that wrong-orientation insertion accounted for 62% of all recorded defects. Controlled trials verify that pin deformation occurs whenever the connector housing is rotated 180 degrees during insertion, proving that geometric alignment, not operator skill, is the primary variable driving defect generation.
Improve
The Improve phase designs, tests, and implements targeted solutions that directly neutralize the validated root causes. Teams use design of experiments (DOE), risk assessments such as FMEA (Failure Mode and Effects Analysis), and mistake-proofing principles to develop robust countermeasures.
For the V220 assembly station, the engineering team introduces a mechanical poka-yoke guide bracket that physically prevents the connector housing from entering the mounting fixture in a reversed orientation. During the pilot implementation week, the defect rate drops from approximately 20 per 1,000 down to 3 per 1,000 connectors, confirming the efficacy of the physical countermeasure.
Control
The Control phase embeds standard operating procedures, documentation, and automated monitoring systems to ensure that performance improvements are sustained over time. The project team transitions the improved process back to regular process owners along with a formal control plan and statistical monitoring charts.
The project team establishes a control chart at the workstation featuring a center line at 3 per 1,000 and an upper control limit of 6 per 1,000. Over the subsequent five weeks, defect measurements remain stable at 3, 2, 4, 3, and 3 per 1,000. Because the process output remains within statistical limits, the team successfully closes the project charter and hands management back to the area supervisor.
Why structured problem-solving matters
Unstructured process improvement efforts frequently fail for two primary reasons:
- Jumping to solutions without empirical root-cause verification: In unguided operational settings, teams frequently implement changes based on senior opinion, supplier claims, or subjective impressions. In the V220 project, the initial assumption held that operator inexperience caused the bent pins. Had the team operated without DMAIC discipline, they likely would have implemented redundant retraining programs, expending labor hours while leaving the 180-degree physical insertion vulnerability untouched.
- Failing to sustain verified improvements over time: Organizations often achieve brief performance gains during an active project, only to see the process degrade back to baseline conditions once management attention shifts elsewhere. The Control phase ensures that standard work instructions, preventive maintenance schedules, and real-time process monitoring mechanisms hold the gains permanently.
Application across diverse industries
While DMAIC originated in electronic component assembly, its mathematical and logical structure makes it universally applicable across high-volume production, service delivery, and transactional back-office environments.
Manufacturing downtime reduction
On an automated bottling line experiencing recurring stoppages, the Measure phase recorded a baseline of 45 stops per shift. By categorizing stoppages through high-speed video analysis and sensor logs during the Analyze phase, engineers discovered that micro-jams were driven by minor conveyor guide rail misalignment at bottle transfer points rather than motor drive failures. Following precision rail adjustments and standardized setup procedures in Improve, total downtime decreased by 80%.
Healthcare patient discharge
A regional hospital system used DMAIC to streamline the inpatient discharge pathway. The Measure phase mapped the discharge pathway, identifying 23 distinct operational steps from physician sign-off to patient exit. In Analyze, delay tracking revealed that waiting for final pharmacy fulfillment caused 60% of total delay time. By redesigning the medication reconciliation process and establishing a dedicated bedside delivery protocol, average discharge times dropped to 90 minutes.
Administrative and financial workflows
A financial services company experienced an 8% error rate across accounts payable processing. In the Measure phase, data collection categorized 12 specific error types across incoming vendor submissions. The Analyze phase revealed that 70% of all defects were numerical transposition errors occurring within a single required software field. After updating the software interface with automated syntax validation and field auto-population in the Improve phase, the overall invoice error rate fell from 8% to 0.5%.
DMAIC compared with other methodologies
Organizations select specific continuous improvement frameworks based on whether they are refining existing processes, creating new designs, or conducting rapid iterative experiments.
| Methodology | Primary Purpose | Project Duration | Core Phases | Ideal Application |
|---|---|---|---|---|
| DMAIC | Incremental defect and variation reduction in existing processes | 2 to 6 months | Define, Measure, Analyze, Improve, Control | Known processes failing to meet performance specifications |
| DMADV | Designing new processes, products, or services (DFSS) | 4 to 12 months | Define, Measure, Analyze, Design, Verify | Creating entirely new processes or replacing fundamentally broken ones |
| PDCA | Rapid continuous improvement and localized experimentation | Days to weeks | Plan, Do, Check, Act | Daily kaizen, frontline problem-solving, and procedural adjustments |
DMAIC provides the statistical rigor required when operational challenges involve hidden interactions, high financial stakes, or complex data environments where simple trial-and-error approaches carry high operational risk.
Frequently asked questions
- When should a project team choose DMAIC instead of DMADV?
- Teams use DMAIC to reduce defects and process variation in existing processes that fail to meet performance specifications. When an organization must create an entirely new process, product, or service, or when an existing process is fundamentally broken beyond repair, they apply DMADV instead. While a typical DMAIC project takes two to six months, DMADV projects focus on design for Six Sigma and span four to twelve months.
- How does DMAIC differ from the PDCA cycle?
- DMAIC serves as a statistically rigorous evolution of the classic Plan-Do-Check-Act cycle designed for complex defects with hidden causes and high financial stakes. While PDCA guides rapid continuous improvement and localized experimentation over days to weeks, DMAIC relies on five structured phases lasting two to six months. DMAIC enforces strict data validation and phase-by-phase tollgate reviews before changes are tested or standardized.
- Why does the DMAIC methodology require validating measurement systems before analyzing data?
- In the Measure phase, teams must prove that data collection tools and human inspectors do not introduce unacceptable variation into defect counts before evaluating performance. Studies such as Gage R&R confirm that inspectors evaluate parts consistently without introducing operator bias into the baseline. Without this verification, teams risk wasting resources analyzing false operational trends caused by faulty inspection tools rather than genuine process defects.
- What is the purpose of a tollgate review in a DMAIC project?
- A tollgate review is a formal checkpoint conducted at the end of each phase where the project sponsor or champion evaluates empirical deliverables. The champion verifies project milestones, confirms data accuracy, and checks strategic alignment before authorizing the team to advance to the next phase. This governance prevents teams from rushing ahead to solutions without validating root causes with empirical data.
- How does the Control phase prevent a process from reverting to baseline conditions?
- The Control phase establishes standard operating procedures, mistake-proofing mechanisms, and statistical control charts that define normal operational variation and detect anomalies in real time. Once performance remains consistently stable within upper and lower statistical limits, the team transitions responsibility and a formal control plan to the regular area supervisor. This structured handover holds gains permanently after active project attention shifts elsewhere.
