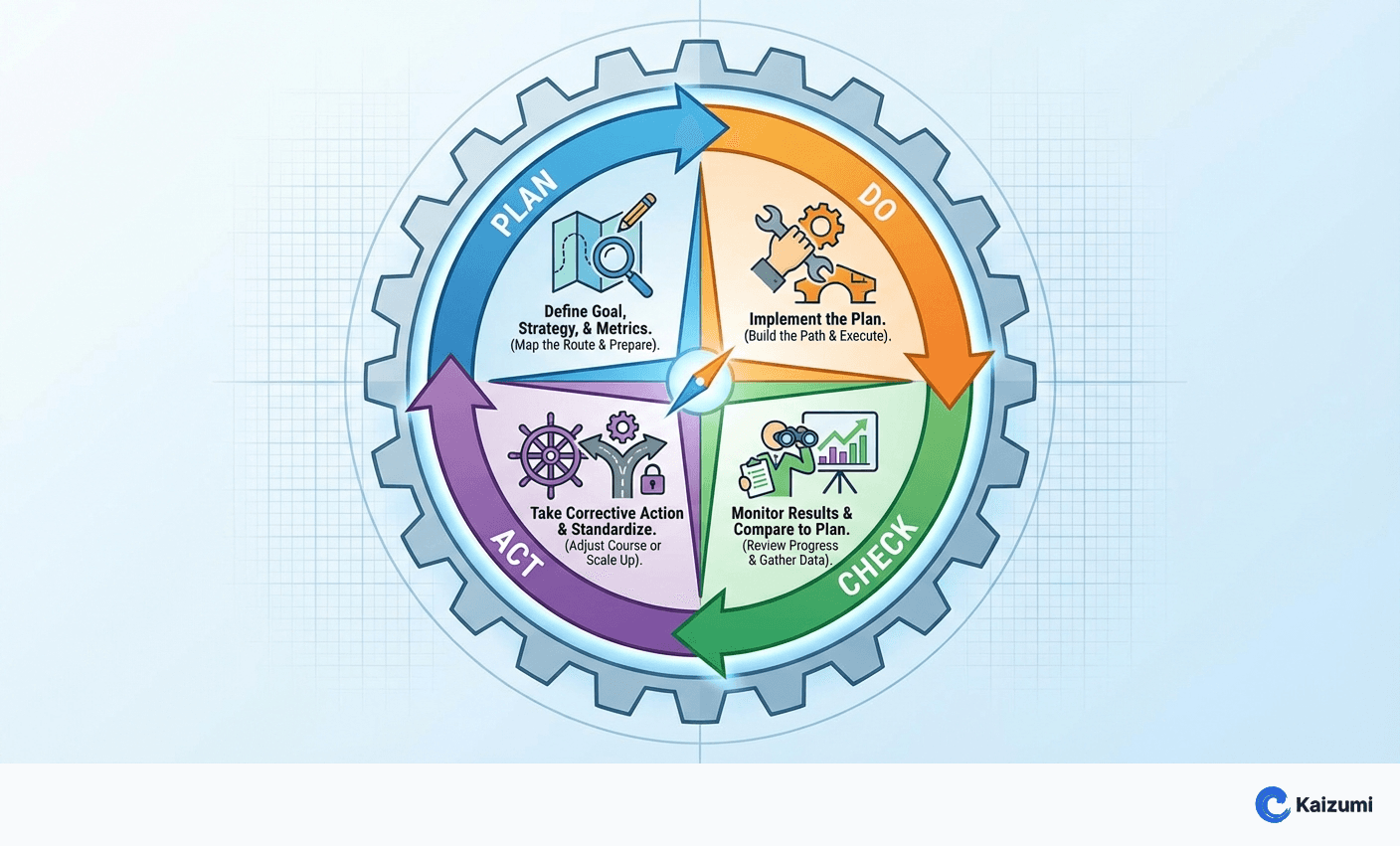

PDCA

Plan

The planning stage establishes the objectives, operational definitions, process boundaries, and target metrics needed to deliver desired outcomes. A structured planning phase contains several defined operational steps:

1. Practitioners define the problem by measuring the current state gap against customer requirements or operational standards.
2. Practitioners investigate the underlying causes using methods like root cause analysis and the 5 whys.
3. The team develops specific, actionable countermeasures aimed directly at the verified root causes rather than symptoms.
4. The team establishes an empirical hypothesis that specifies the expected quantitative outcome of the countermeasure within a defined timeframe.

The core discipline of the planning phase is that every plan must carry an explicit numerical target, which prevents ambiguous evaluation during the check phase.

Do

The do stage involves executing the plan on a small, controlled scale. Rather than deploying widespread process modifications across an entire enterprise or assembly line, practitioners implement trials in pilot cells, selected workstations, or defined time intervals.

During this phase, teams carry out the intervention according to the exact parameters outlined in the planning phase. Observers record qualitative observations, process anomalies, operator feedback, and time-stamped operational metrics without altering the experimental conditions during the run.

Check

The check stage compares the quantitative data gathered during the trial against the baseline metrics and the numerical hypothesis established during the planning stage.

The discipline dictates that the plan carries a number and the check measures it. If an intervention was predicted to decrease process cycle time from 48 seconds to 40 seconds, the check phase measures actual run times over a statistically significant sample size. The evaluation determines whether the countermeasure produced the predicted effect, caused unexpected secondary effects, or failed to influence the target variable.

Act

The act stage determines the systemic disposition of the experimental change based on the data evaluated during the check phase.

When a trial validates the hypothesis, the organization updates standard operating procedures, trains operators on the modified method, and integrates the countermeasure into permanent work documentation. When a trial fails to meet the target metric, the countermeasure is discarded, restoring the workstation to its previous baseline standard. The learnings and data generated by the failed experiment are then documented to inform the root cause analysis of the subsequent planning phase.

Manufacturing workstation cycle time

A manufacturing facility observed that a manual packaging workstation had an average cycle time of 48.0 seconds against a customer-mandated takt time of 40.0 seconds. The team initiated a two-turn PDCA investigation at the single workstation.

In Cycle 1, the team hypothesized that relocating packaging materials from an external rack directly onto the work table would reduce reach distances and reduce cycle time to 39.0 seconds (Plan). The team rearranged the materials and ran a 50-unit pilot run (Do). Cycle 1 was checked at 44.0 seconds, failing to achieve the 39.0-second target due to physical clutter on the work table impeding operator movement (Check). The trial was discarded, returning the station to its 48.0-second baseline layout while logging the spatial bottleneck data (Act).

In Cycle 2, the team used the spatial data to design a vertical gravity feeder that positioned boxes immediately above the workstation without consuming table space, hypothesizing a cycle time reduction to 38.0 seconds (Plan). The feeder was fabricated and tested for 50 units (Do). Cycle 2 was checked at 37.0 seconds with zero operator ergonomic complaints (Check). The vertical gravity feeder layout was standardized across all packaging stations in the facility, and work instructions were updated (Act).

Machining tool longevity

A precision metal components manufacturer experienced frequent downtime on computer numerical control (CNC) milling centers due to premature cutting insert wear.

The engineering team analyzed tool wear patterns and identified excessive heat generation at the tool-workpiece interface as the root cause. The team hypothesized that switching to an alternative cutting fluid formulation would reduce thermal friction and extend cutting tool lifespan by at least 15% (Plan).

The team isolated one CNC milling center, filled its reservoir with the alternative fluid, and ran production for one week under standard machining parameters (Do). Inspection data showed a 20% improvement in tool life with no degradation in surface finish (Check). The maintenance and procurement departments standardized the new cutting fluid across all CNC milling equipment and updated fluid management schedules (Act).

Healthcare appointment adherence

An outpatient clinic experienced elevated patient appointment no-show rates, leaving clinical capacity underused and delaying patient care.

The administrative staff found that manual reminder telephone calls were reaching only part of the scheduled patients. The staff hypothesized that automated text reminders sent 48 hours before a visit would decrease missed appointments by 25% (Plan).

The clinic piloted the text notification system for one provider's patient panel over a one-month period, keeping manual calls elsewhere as a control (Do). At the end of the month, that provider's no-show rate had declined by 30% relative to the baseline and the control group (Check). The clinic standardized automated text reminders across all clinical departments and updated patient intake procedures to verify mobile phone numbers (Act).
