Quality & variation
Six Sigma
Work out a sigma level
Defects and units are counted. Opportunities per unit are chosen — and that is the input that moves the answer most.
the board either ships right or it does not — what a customer experiences
Three to four sigma. Where most unimproved processes sit. Defects are still common enough to sample cheaply, which makes this the range a project can actually measure.

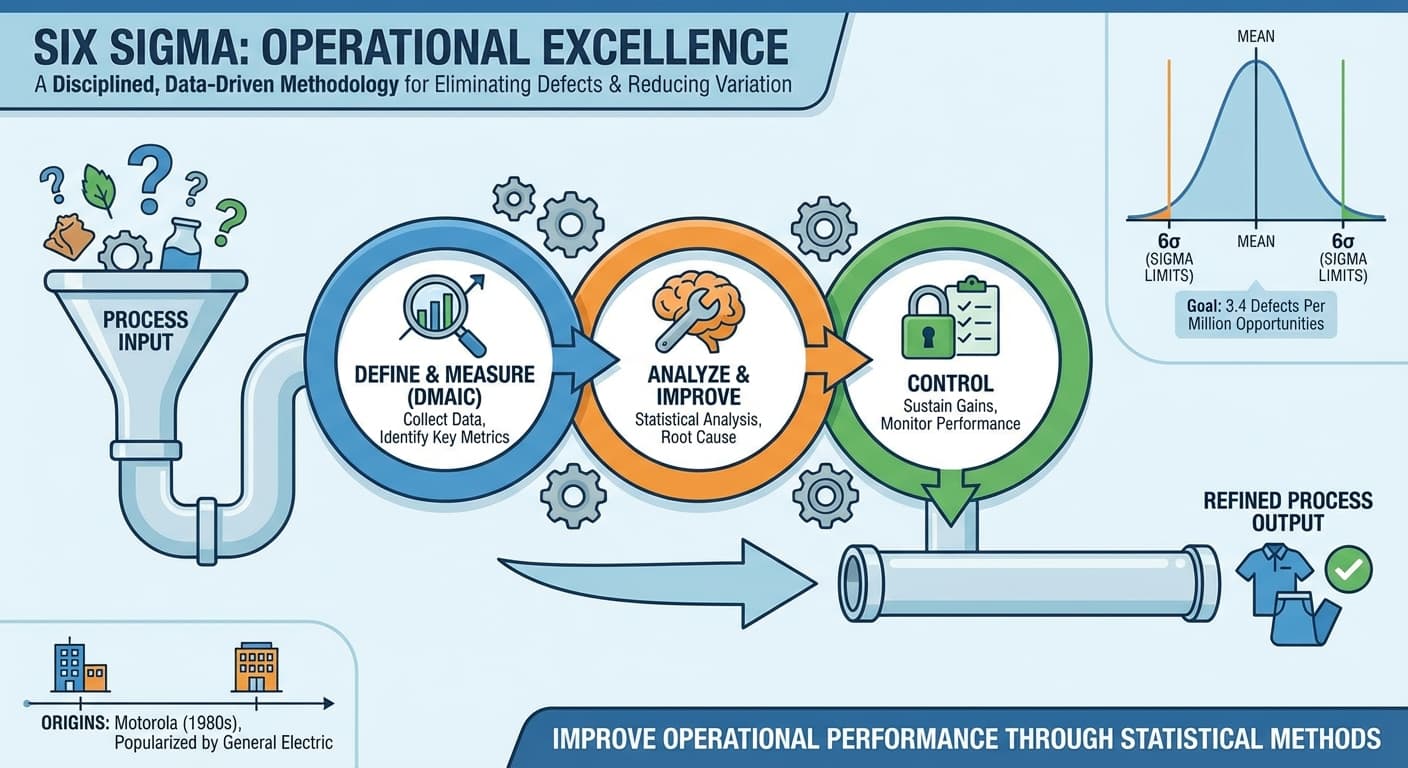

Six Sigma is a defect-reduction methodology that converts observed defect rates into equivalent standard deviations from a specification limit. A sigma level is not an absolute physical constant but a unit conversion whose result depends on the denominator selected for defect opportunities. For the same defect rate, a production line reads as 3.98 sigma when evaluated at one opportunity per unit, but rises to 5.09 sigma when forty opportunities are defined across the same assembly.
Matthew SavasFounder of Kaizumi. Reviewed 19 August 2026.
Counting
What a sigma level actually counts
Six Sigma measures how often a process fails to deliver what a customer specified, scaled against the number of chances it had to fail. It does not measure percentage yield, it does not count defective items, and it does not describe quality in the abstract. It calculates defects per million opportunities, looks up the corresponding distance from the process mean to the nearest specification limit in standard deviations, and adds an artificial constant of 1.5.
Four terms must be separated before calculating anything:
- A unit is the item being inspected: one circuit board, one insurance claim, one machined valve body.
- A defect is any specific instance of failing a customer requirement: a missing solder fillet, an incorrect postcode, a scratch deeper than specification.
- An opportunity is a distinct, measurable chance for a defect to occur on that unit.
- A defective unit is a unit carrying at least one defect. A circuit board with 3 cold joints and 1 incorrect resistor is 1 defective unit carrying 4 defects.
Six Sigma counts defects, not defectives. A process that builds 100 units where 1 unit contains 20 wiring faults has 20 defects. A process that builds 100 units where 20 units contain 1 fault each also has 20 defects. Traditional yield treats the first batch as 99 percent good and the second as 80 percent good. Six Sigma treats their defect rate as identical because the count of operational failures is identical.
Take an electronics line shipping 20,000 circuit boards in a month. Inspection detects 130 defects across the run. Evaluating the board as a single pass-fail test (1 opportunity per unit) gives:
DPMO = (D ÷ (U × O)) × 1,000,000- D
- Defects counted. Total failures found across the inspection run.
- U
- Units inspected. Total batch volume evaluated over the period.
- O
- Opportunities. Designated failure chances per unit.
- DPMO
- Defects per million opportunities. Standardised failure rate.
DPMO = (130 ÷ (20,000 × 1)) × 1,000,000 = 6,500
A failure rate of 6,500 parts per million equals a yield of 99.35 percent. Under the standard normal distribution, a single-tailed tail probability of 0.0065 sits 2.48 standard deviations from the mean (Z = 2.48). Six Sigma reporting convention adds a mandatory 1.5 sigma offset to convert this short-term statistic into a nominal long-term capability score.
Sigma level = Z + 1.5- Z
- Z-score. Standard deviations from the mean to the specification limit on a standard normal curve.
- 1.5
- The shift constant. The assumed long-term process drift adopted by Motorola.
Sigma level = 2.48 + 1.5 = 3.98
When teams describe an operation as a "four-sigma process", this is the calculation they use.
| Sigma level | Long-term DPMO | Equivalent yield | Defect drop to next level |
|---|---|---|---|
| 3 sigma | 66,807 | 93.32 percent | — |
| 4 sigma | 6,210 | 99.379 percent | -91 percent |
| 5 sigma | 233 | 99.9767 percent | -96 percent |
| 6 sigma | 3.4 | 99.99966 percent | -98.5 percent |
Between 3 sigma and 4 sigma, yield moves by 6.06 percentage points (93.32 to 99.379 percent). Between 5 sigma and 6 sigma, yield moves by 0.023 percentage points (99.9767 to 99.99966 percent).
Percentages lose visual resolution where reliable processes operate. A dashboard reporting 99.9 percent yield lumps processes running at 1,400 DPMO and 700 DPMO into the same single-decimal figure, hiding a two-fold difference in customer-bound failures. DPMO and sigma levels preserve numerical resolution in the tail of the distribution.
The denominator
Why one line scores 3.98 and 5.09 sigma
A sigma level is not an objective physical property of a line; it depends on how the opportunity count is defined. Two engineers inspecting the same hardware with identical scrap bins can produce different capability scores by choosing different denominators.
Take the electronics line shipping 20,000 boards with 130 solder flaws.
Rule A — Unit-level opportunity
- 20,000 units inspected
- 1 opportunity per unit (board passes or fails)
- 20,000 total opportunities evaluated
- 130 defects found
- DPMO = 6,500
- Z = 2.48
- Sigma level = 3.98
Rule B — Component-level opportunity
- 20,000 units inspected
- 40 opportunities per unit (40 solder joints per board)
- 800,000 total opportunities evaluated
- 130 defects found
- DPMO = 162.5
- Z = 3.59
- Sigma level = 5.09
Rule A treats the finished product as the deliverable: the customer receives a functional board, and any fault renders it defective. Rule B treats the assembly process as the deliverable: the soldering machine forms 40 independent joints per board, each representing a chance to succeed or fail.
Switching from Rule A to Rule B cuts recorded DPMO from 6,500 to 162.5 and raises the sigma level from 3.98 to 5.09 — an apparent gain of 1.11 sigma achieved without touching a machine parameter or reducing defects by a single unit.
To earn that same 1.11 sigma improvement under Rule A with the denominator fixed at 1, the team would need to cut monthly defects from 130 to 3.25 — a 40-fold reduction in defect generation.
| Opportunities counted per board | Basis of definition | Resulting DPMO | Yield equivalent | Sigma level |
|---|---|---|---|---|
| 1 | Entire board assembly | 6,500 | 99.35000 percent | 3.98 |
| 4 | Major circuit quadrants | 1,625 | 99.83750 percent | 4.44 |
| 12 | Integrated circuit packages | 542 | 99.94580 percent | 4.77 |
| 40 | Individual solder joints | 162.5 | 99.98375 percent | 5.09 |
This denominator spread makes cross-company sigma comparisons meaningless unless both organisations share identical operational definitions of an opportunity.
An organisation can arbitrarily inflate its sigma score by decomposing every assembly into microscopic opportunities — counting every thread, lead, label, and packaging tab.
Define your opportunity count once at project kickoff, document the boundaries in standard work, and never adjust the denominator to show progress. Progress must appear in the numerator.
Inflating the denominator also degrades metric sensitivity. At 40 opportunities per unit, eliminating 10 defects shifts DPMO by only 12.5. At 1 opportunity per unit, those same 10 defects shift DPMO by 500.
The shift
Where 3.4 defects per million comes from
The widely quoted figure of 3.4 defects per million opportunities is not the tail area of a centred normal distribution at six standard deviations.
For a centred normal distribution midway between the Upper Specification Limit (USL) and Lower Specification Limit (LSL), the clearance to each limit is 6.0 standard deviations. The area beyond 6.0 sigma in a single tail is 0.00099 parts per million. Summing both tails yields 0.00197 DPMO — roughly 2 defects per billion opportunities.
Centred process — true statistical 6 sigma
Both tails combined: 0.00197 DPMO (~2 defects per billion)
Shifted process — Six Sigma reporting standard
Tail beyond 4.5 σ: 3.3977 DPMO (conventionally rounded to 3.4)
The value 3.4 comes from shifting the process mean towards one limit by 1.5 standard deviations, reducing clearance to the near limit from 6.0 sigma to 4.5 sigma. The probability in a single normal tail beyond 4.5 sigma is 0.0000033977, or 3.3977 per million. The far limit is 7.5 sigma away, where the tail area is negligible. Quality literature rounds 3.3977 to 3.4.
Motorola adopted the 1.5 sigma offset empirically in the 1980s. Short-term capability studies capture only immediate machine variation, whereas long-term production encounters tool wear, raw material batch changes, ambient temperature swings, and calibration drift. Motorola introduced the constant 1.5 sigma shift in the 1980s as an empirical allowance for long-run process drift, though it has no general mathematical derivation.
There is no mathematical law dictating that processes drift by 1.5 standard deviations. In practice, physical drift varies substantially across processes: tightly controlled mechanical operations may remain exceptionally stable over time, while batch chemical processes can experience pronounced shifts between raw material feeds.
In classical statistical process control, process capability is expressed as Cpk:
Cpk = (USL - Mean) ÷ (3 × σ) [for upper limit clearance]
Under this index:
- Cpk = 1.00 corresponds to 3.0 sigma clearance.
- Cpk = 1.33 corresponds to 4.0 sigma clearance.
- Cpk = 1.50 corresponds to 4.5 sigma clearance.
- Cpk = 2.00 corresponds to 6.0 sigma clearance.
Six Sigma programs define the reported sigma level as 3 × Cpk.
When a line runs at Cpk = 1.33, true clearance to the limit is 4.0 sigma. If it remains centred, it produces roughly 32 DPMO (single tail). Under Six Sigma convention, that Cpk = 1.33 process is assigned a nominal "4.0 sigma level", which assumes the clearance to the near limit falls to 2.5 sigma after a 1.5 sigma drift and generates 6,210 DPMO in standard lookup tables.
Calculate short-term capability (Cp / Cpk) and long-term performance (Pp / Ppk) directly from multi-month subgroup data.
The difference between short-term and long-term Z-scores is the true operational drift. Using an arbitrary 1.5 constant indicates an absence of long-term control chart data.
The hidden factory
What a 99.35 percent final yield hides
Final yield measures only what passes inspection on the final attempt. It conceals internal loops of disassembly, touch-up, re-soldering, and re-testing that occur between the first station and packaging.
This rework loop is the hidden factory. It consumes capacity, adds indirect labour, masks process instability, and introduces latent reliability flaws into reworked units.
Consider 20,000 circuit boards passing through five sequential operations:
| Process step | Units entering | Units reworked | First-pass yield |
|---|---|---|---|
| 1. Form | 20,000 | 300 | 98.50 percent |
| 2. Weld | 20,000 | 160 | 99.20 percent |
| 3. Coat | 20,000 | 520 | 97.40 percent |
| 4. Assemble | 20,000 | 40 | 99.80 percent |
| 5. Test | 20,000 | 180 | 99.10 percent |
To assess true line capability, calculate first-pass yield at each operation and multiply them to get Rolled Throughput Yield (RTY):
RTY = Y1 × Y2 × Y3 × Y4 × Y5- Y1
- Form yield. (20,000 - 300) ÷ 20,000 = 0.9850.
- Y2
- Weld yield. (20,000 - 160) ÷ 20,000 = 0.9920.
- Y3
- Coat yield. (20,000 - 520) ÷ 20,000 = 0.9740.
- Y4
- Assemble yield. (20,000 - 40) ÷ 20,000 = 0.9980.
- Y5
- Test yield. (20,000 - 180) ÷ 20,000 = 0.9910.
- RTY
- Rolled Throughput Yield. Probability that a unit clears all five steps without rework.
RTY = 0.9850 × 0.9920 × 0.9740 × 0.9980 × 0.9910 = 0.9413 = 94.13 percent
Across the five steps, operators performed 1,200 separate rework actions (300 + 160 + 520 + 40 + 180). Assuming defects are distributed independently, only 18,825 boards cleared all five operations untouched (20,000 × 0.9413), while 1,175 boards required rework intervention.
The difference between final yield and rolled throughput yield transforms the capability evaluation:
- Final yield of 99.35 percent corresponds to 6,500 DPMO (3.98 sigma).
- Rolled throughput yield of 94.13 percent corresponds to 58,737 DPMO (3.07 sigma).
The hidden factory masks a capability gap of 0.91 sigma.
Calculating the normalised step yield gives:
Normalised yield = RTY^(1/5) = (0.9413)^(0.2) = 0.9880 = 98.80 percent
Each step averages 98.80 percent first-pass yield (12,000 DPMO, or 3.76 sigma). Compounding five steps reduces total line output to 94.13 percent. If the line contained 50 sequential steps at this capability, rolled throughput yield would fall to 0.9880^50 = 54.7 percent — over 45 percent of production would require rework despite every supervisor reporting individual step yields near 99 percent.
The project
DMAIC, belts and what a project costs
Six Sigma executes improvement through DMAIC (Define, Measure, Analyse, Improve, Control). Unlike rapid continuous improvement events that adjust physical workstations within a shift, DMAIC investigates root causes masked by interacting process variables.
| Phase | Core activity | Concrete deliverable |
|---|---|---|
| Define | Identify the defect, define scope, state customer requirements. | Charter with problem statement and baseline metrics. |
| Measure | Map the process, validate measurement systems, collect continuous data. | Gage R&R report (measurement error < 10 percent); baseline capability. |
| Analyse | Formulate hypotheses, isolate critical input variables (Xs), test significance. | ANOVA tables, regression models identifying root causes (Y = f(X)). |
| Improve | Formulate countermeasures, run designed experiments (DOE), verify reduction. | Pilot run data demonstrating verified shift in mean and variance. |
| Control | Standardise process parameters, implement SPC, hand over to operations. | Standard Operating Procedures, control charts, process owner sign-off. |
Attribute data (pass/fail counts) becomes impractical for verification as quality improves because required sample sizes grow exponentially.
| Target sigma level | Associated DPMO | Average units produced per single defect |
|---|---|---|
| 3 sigma | 66,807 | 15 |
| 4 sigma | 6,210 | 161 |
| 5 sigma | 233 | 4,299 |
| 6 sigma | 3.4 | 294,319 |
At 6 sigma, finding a single defect requires inspecting an average of 294,319 consecutive units. Constructing a statistically valid hypothesis test using pass/fail counts at that level requires observing dozens of failures across millions of parts.
You cannot count your way to Six Sigma.
For this reason, DMAIC projects rely on continuous variables data. Instead of classifying a solder joint as good or bad, the project measures continuous physical parameters: wetting angle in degrees, paste volume in cubic micrometres, reflow peak temperature in degrees Celsius, and conveyor speed in millimetres per second. Continuous data lets sample sizes of 30 to 50 parts establish changes in mean and spread with high statistical power.
Continuous data collection requires evaluating measurement tools through a Gage Repeatability and Reproducibility (Gage R&R) study. If measurement error consumes more than 30 percent of the specification band, the data captures gauge variation rather than process variation.
If operators cannot measure the same part twice and get the same value (repeatability), or if two inspectors record different numbers on the same feature (reproducibility), process data is invalid.
Running statistical analysis on unvalidated measurement tools models gauge noise rather than production tooling.
Organisations structure project roles into hierarchical belt tiers:
- Yellow Belt: Baseline operational contributor. Understands core terminology, participates in data collection, and supports project teams at the gemba.
- Green Belt: Part-time project leader. Typically an engineer, supervisor, or operations lead who runs 1 to 2 DMAIC projects per year within their functional area.
- Black Belt: Full-time technical specialist. Trained in Design of Experiments, regression, and multivariate hypothesis testing. Black Belts lead cross-functional projects and mentor Green Belts.
- Master Black Belt: Technical advisor and coach. Manages program governance, audits statistical standards, and consults on complex modeling.
- Champion / Sponsor: Executive leader with budgetary authority. Charters projects, removes roadblocks, approves equipment modifications, and validates financial closure.
No single standardisation body governs Six Sigma certification. The American Society for Quality (ASQ), the International Association for Six Sigma Certification (IASSC), commercial consultancies, and individual companies each maintain separate certification criteria.
Fit
When Six Sigma is the wrong tool
DMAIC is designed for complex problems with unknown root causes. Applying full statistical architecture to obvious failure modes adds project overhead without adding insight.
Reach for Six Sigma when
- The root cause of variation is genuinely unknown
- Multiple variables interact simultaneously (Y = f(X_1, X_2, X_n))
- The process is already stable and in basic control
- Historical improvements have plateaued
- High-volume continuous data is affordable to collect
- Defect volume justifies a multi-month investigation
Reach for something else when
- The root cause is visible on the shop floor
- A single physical failure mode exists (use 5 Whys)
- The line lacks standard work or basic stability
- The defect can be designed out physically (use Poka-Yoke)
- The primary issue is queue time, inventory, or flow
- Defect volume is too small to justify project overhead
If an operator occasionally inserts a connector backwards, do not run a four-month project and build an ANOVA table. Machine an asymmetric guide pin onto the fixture so the connector physically cannot enter backwards. Mistake-proofing (poka-yoke) eliminates the opportunity entirely rather than managing its probability.
Statistical characterisation requires a stable baseline. If a cell lacks standard work, if operators follow different routines, or if maintenance occurs only after breakdowns, common-cause variation is drowned out by special causes. The resulting data is non-stationary.
Standardise work sequences, stabilise maintenance, and balance flow before calculating statistical capability.
Eliminating lead time and excess work-in-progress inventory exposes defects minutes after generation rather than weeks later at final test.
Use Lean methods to establish standard work and continuous flow; deploy Six Sigma statistical tools when multivariate variation persists in stable processes.
The final criterion is project economics. A DMAIC project consumes engineering time, machine availability for designed experiments, and metrology resources. If a defect mode causes minor scrap that can be resolved with standard maintenance or simple tooling fixtures, chartering a full analytical project is an inefficient use of engineering capacity.
Straight answers
Six Sigma questions people ask
- What is Six Sigma?
- Six Sigma is a data-driven quality methodology designed to reduce process variation and eliminate defects. It uses statistical analysis, structured project execution (DMAIC), and a standardised metric — defects per million opportunities (DPMO) — to achieve predictable, highly capable processes.
- What does 3.4 defects per million mean?
- It is the defect rate that occurs when a process with normal variation experiences a 1.5 standard deviation shift in its mean, leaving 4.5 standard deviations of clearance between the mean and the nearest specification limit. A perfectly centred six-sigma process produces just 2 defects per billion opportunities.
- How do you calculate a sigma level?
- Count total defects (D), total units inspected (U), and defect opportunities per unit (O). Compute DPMO = (D ÷ (U × O)) × 1,000,000. Determine the single-tail normal distribution value Z corresponding to that defect rate, and add 1.5. A rate of 6,500 DPMO gives Z = 2.48, which equals a 3.98 sigma level.
- What is DPMO?
- Defects Per Million Opportunities. It standardises failure rates by dividing the defect count by the total opportunities evaluated across the entire batch, multiplied by 1,000,000. It allows processes of varying complexity to be compared using a common mathematical denominator.
- How do you determine the number of opportunities per unit?
- You define opportunities by identifying distinct, measurable features where execution can fail a customer specification. A solder joint, a critical diameter, and a label position can each be counted as 1 opportunity. The choice of denominator is an operational definition: expanding the count inflates the resulting sigma level without reducing actual defects.
- Why is there a 1.5 sigma shift?
- Motorola engineers introduced the 1.5 sigma shift in the 1980s to account for long-term operational drift caused by tool wear, temperature changes, raw material variation, and machine aging. It is an empirical convention rather than a mathematically derived natural law.
- What are the Six Sigma belt levels?
- Belts designate levels of methodological expertise. Yellow Belts understand basic concepts and support data collection; Green Belts lead part-time projects in their functional areas; Black Belts lead full-time multivariate projects and mentor teams; Master Black Belts manage enterprise deployments and audit statistical standards.
- How does Six Sigma differ from Lean?
- Lean focuses on eliminating non-value-added waste, shortening lead times, and optimizing flow using visual tools and continuous kaizen on shop-floor clocks. Six Sigma focuses on reducing variation, improving capability, and eliminating defects using statistical hypothesis testing on multi-month project clocks.
- Is Six Sigma only applicable to manufacturing?
- No. Transactional processes — such as healthcare records management, financial invoicing, software deployment pipelines, and customer service ticket resolution — can be evaluated with Six Sigma if they have clear customer specifications, measurable defect criteria, and continuous or high-volume discrete data.
- Did Motorola and General Electric actually save billions of dollars with Six Sigma?
- Both corporations published multi-billion dollar savings figures during their commercial rollouts in the 1980s and 1990s. Those savings figures were self-reported internal accounting metrics that included standard operational cost reductions, and neither figure was ever independently audited by third-party accounting firms.
