Fishbone Diagram

A fishbone diagram, also known as an Ishikawa or cause-and-effect diagram, is a visual problem-solving tool used to identify, categorize, and explore potential causes of a specific defect or outcome. Structured like a fish skeleton, it organizes causal factors along a central spine into major categories such as the 6M, 4S, or 8P frameworks, branching into ribs and twigs. It helps teams conduct comprehensive root cause analysis and generate hypotheses before collecting empirical data for validation.

0/6 explored

Key facts

Alternative Names: Ishikawa diagram, Cause-and-effect diagram
Origin Year: 1943 (Kawasaki Steel)
Structural Tiers: Spine, Bones, Ribs, Twigs
Common Frameworks: 6M, 4S, 8P
6M Categories: Machine, Method, Material, Measurement, Milieu, Manpower

By Matthew Savas — Founder of Kaizumi. Reviewed 17 August 2026.

A fishbone diagram (or Ishikawa diagram) is a structured problem-solving tool that organizes potential causes of a specific defect or outcome into categorized branches. It helps teams brainstorm comprehensively during root cause analysis before gathering empirical evidence to isolate true causes. As one of The seven basic quality tools, it is also referred to as a cause-and-effect diagram. The visual layout arranges potential causal factors hierarchically to distinguish between surface symptoms and potential underlying mechanisms. Teams commonly construct these models using a dedicated Fishbone diagram maker to facilitate collaborative brainstorming during continuous improvement projects.

Try it yourself

Loading…

History and origin

Ishikawa first used the method in 1943 at Kawasaki Steel to help engineers organize and evaluate complex metallurgical variables. Throughout the 1950s, Ishikawa refined the technique as a core method for quality circles, cross-functional groups of frontline workers trained to identify and solve operational issues. Ishikawa introduced the framework to international audiences in his 1968 publication, Guide to Quality Control. Since its introduction, the tool has become a standard method across manufacturing, administrative operations, software engineering, and healthcare quality programs.

Structural anatomy and categorization frameworks

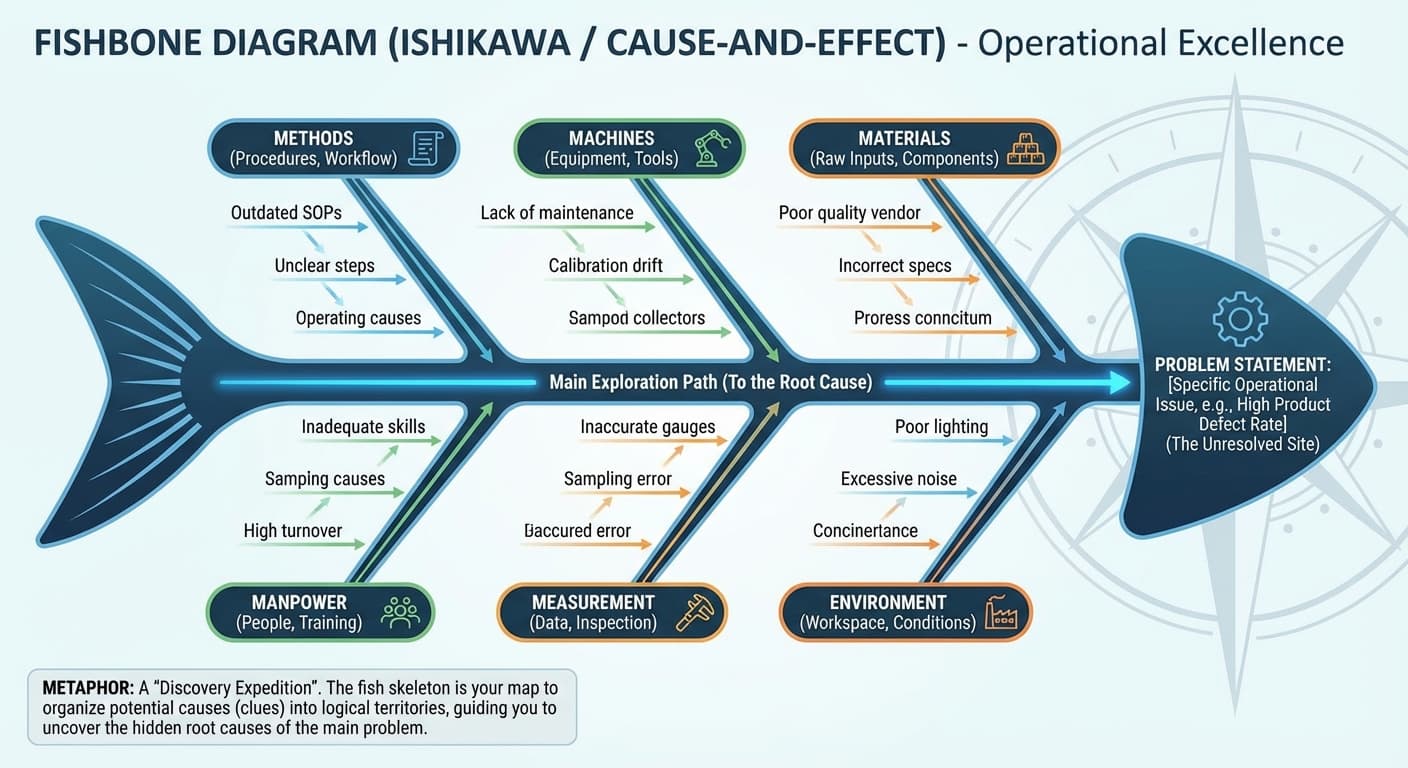

The visual layout of the diagram resembles a fish skeleton. The anatomy consists of four primary structural tiers:

Spine: A central horizontal line directed toward the head of the diagram, where the specific problem statement or effect is defined.
Bones: Major diagonal branches extending from the spine, each representing a primary category of potential causes.
Ribs: Secondary horizontal lines branching off each bone, representing specific potential causes identified within that category.
Twigs: Sub-branches extending from the ribs that represent deeper underlying contributing factors, typically identified by asking why multiple times.

Categories provide a structured taxonomy to ensure balanced brainstorming across different operational domains. Common category frameworks include:

6M Framework: Primarily used in industrial settings, covering Machine, Method, Material, Measurement, Milieu (Environment), and Manpower (People).
4S Framework: Applied in service and administrative settings, covering Surroundings, Suppliers, Systems, and Skills.
8P Framework: Used in marketing, retail, and transactional processes, covering Product, Price, Place, Promotion, People, Process, Physical Evidence, and Productivity.

These categories are renameable and can be adapted to fit any specialized technical or operational context.

Methodology and step-by-step application

Constructing an effective cause-and-effect diagram follows a standard four-phase process:

Defining the Problem Statement: The team writes a clear, factual, and non-judgmental description of the specific defect at the head of the diagram. The problem statement must define what is failing, where it occurs, and when it started, avoiding vague generalizations or pre-assigned blame.
Establishing Categories: The team selects the appropriate category framework for the process under study and draws the primary diagonal bones radiating from the central spine.
Brainstorming Potential Causes: Facilitators guide team members to identify possible causes within each category. The team records these hypotheses on the ribs. To probe deeper into mechanisms, teams apply 5 Whys techniques, creating twigs off each rib to trace causal chains. Teams can leverage a digital 5 Whys builder or consult guides on Five whys root cause analysis to maintain discipline during this phase.
Screening and Verifying Hypotheses: Because brainstorming produces hypotheses rather than proven facts, teams must screen and validate candidate causes using objective data collection rather than subjective consensus.

Practical worked example: warehouse shipping errors

The following worked example illustrates how an operations team identifies, screens, and verifies root causes in a logistics fulfillment center.

A distribution center experienced an increase in order fulfillment errors. A poorly framed statement such as "pickers are making too many mistakes" offers no actionable boundaries. In contrast, an operational statement such as "wrong item shipped on 3.1% of Zone B night orders since 14 July" defines the exact location, shift, baseline volume, and timeline. For instance, if Zone B processes 4,000 orders per week at night, an error rate of 3.1 percent translates to 4,000 × 0.031 = 124 incorrect shipments every week.

During the initial brainstorming session, the cross-functional team populated the 6M categories. For example, a thorough investigation into warehouse shipping errors might yield 31 distinct hypotheses: People (6), Machine (4), Method (7), Material (5), Measurement (5), and Environment (4).

Because organizations lack the resources to investigate 31 items simultaneously, teams use systematic screening tests to narrow the list:

Contrast Analysis: The team compares the problem location with unaffected areas. In the warehouse shipping example, applying contrast analysis eliminates 22 of the 31 potential causes, leaving 9 candidates for further evaluation. These 22 conditions were eliminated because they existed identically in Zone A and the Day Shift, where error rates remained normal.
Timeline Analysis: If an error rate spiked on 14 July, the root cause must stem from a change that occurred immediately prior to that date. Any condition that existed in a stable state for months or years prior to 14 July cannot account for the sudden onset of defects. Examining the historical timeline reveals that 7 of the remaining 9 conditions had been standard operating conditions for over a year.

Eliminating these historical baselines leaves 2 surviving hypotheses:

Material: On 10 July, a supplier changed the packaging dimensions of SKU 884 to match SKU 885, making the two products visually indistinguishable in bin locations without close label inspection.
Machine: On 8 July, a scanner firmware update altered the verification routine, allowing pickers to confirm an order by scanning the case barcode rather than the physical bin barcode.

The team gathered empirical shipping data to evaluate the two surviving hypotheses. Reviewing the previous week's 124 incorrect shipments revealed that 96 errors (77 percent) involved the 7 newly paired lookalike items. The remaining errors occurred because the scanner firmware update allowed pickers to bypass the bin barcode scan entirely.

The team implemented two corrective actions:

Physically separated lookalike SKUs into non-adjacent aisles.
Rolled back the scanner firmware to require bin-location barcode verification prior to item pick confirmation.

Correcting both conditions, physically separating the item pairs and restoring bin-location verification on the scanners, reduced the error rate from 3.1 percent to 0.4 percent. This resulted in 16 errors per week (4,000 × 0.004), representing an 87 percent reduction (108 fewer weekly errors).

Integration with other quality and lean tools

The fishbone diagram is most effective when integrated with complementary quality methodologies:

Pareto chart: Before constructing a fishbone diagram, teams use a Pareto chart to identify which defect category accounts for the majority of losses. After brainstorming, Pareto analysis helps prioritize which causal branches contribute to the highest volume of failures.
Control chart: Teams use a Control chart to detect special-cause variation and establish the exact date when a process went out of control, providing the timeline anchor needed for fishbone screening.
A3 problem solving: The fishbone diagram occupies the root cause analysis section of a standard A3 report. Practitioners can study A3 problem solving guides or practice diagnostic scenarios in an interactive A3 detective game.
FMEA worksheet: Hypotheses developed on a fishbone diagram serve as direct inputs for failure modes and mechanisms evaluated in Failure Mode and Effects Analysis.
Poka-yoke: Once root causes are confirmed on the diagram, teams design poka-yoke error-proofing devices to eliminate the possibility of recurrence.
Kaizen event: Fishbone diagrams are standard working artifacts used during a rapid kaizen event to engage cross-functional teams in structured diagnostic work.

Applications across industries

Different operational sectors adapt the fishbone diagram to address industry-specific failure modes:

Manufacturing: Teams follow standard Fishbone diagram in manufacturing protocols to evaluate machine tolerances, raw material variations, tooling wear, and standard work deviations.
Healthcare: Clinical teams utilize Fishbone analysis in healthcare to investigate medication delivery delays, diagnostic errors, patient fall incidents, and surgical preparation flow.
Food Service and Hospitality: Restaurant operations use Fishbone diagram in a restaurant models to isolate causes of ticket time spikes, food temperature non-compliance, order inaccuracies, and food waste.

Limitations and common pitfalls

While the fishbone diagram is an effective brainstorming and structuring tool, practitioners must navigate several inherent limitations:

Brainstorming vs. Verification: A fishbone diagram generates hypotheses, not verified root causes. Teams often make the mistake of voting on branches and implementing solutions without collecting empirical validation data.
Lack of Prioritization: It does not quantify severity or frequency: All branches appear with equal graphical weight regardless of whether a factor accounts for 1 percent or 80 percent of total defects.
Category Imbalance: If a team finds that one branch contains dozens of entries while another is completely empty, they should perform a structured 5 Whys analysis on that category, or select a more appropriate category framework.
Linear Bias: Highly complex systems with non-linear feedback loops or multi-variable interactions may not fit neatly into simple branch hierarchies. In such cases, fishbone diagrams should be paired with multi-variate statistical testing and regression models.

Frequently asked questions

How do teams narrow down dozens of brainstormed causes on a fishbone diagram?: Teams screen brainstormed factors using contrast analysis and timeline analysis rather than subjective voting. Contrast analysis eliminates conditions that exist identically in unaffected areas or shifts, while timeline analysis removes historical conditions that were stable long before the defect onset date. The small number of surviving candidate hypotheses are then verified through empirical data collection.
How does a fishbone diagram differ from the 5 Whys technique?: A fishbone diagram provides a broad taxonomy to organize and categorize potential causes across an entire system during brainstorming. In contrast, the 5 Whys technique follows a single causal chain to probe deeper into underlying mechanisms. Teams routinely combine them by using the 5 Whys to build secondary twigs that branch off each rib on the fishbone diagram.
Which category frameworks are used to organize a fishbone diagram?: Teams select frameworks tailored to their operating environment. Industrial processes rely on the 6M framework (Machine, Method, Material, Measurement, Milieu, and Manpower), administrative and service settings use the 4S framework (Surroundings, Suppliers, Systems, and Skills), and transactional or commercial environments use the 8P framework (Product, Price, Place, Promotion, People, Process, Physical Evidence, and Productivity).
Why should teams avoid implementing solutions directly from a fishbone diagram?: A fishbone diagram records brainstorming hypotheses rather than verified facts. Because every item on the diagram appears with equal graphical weight, the visual layout cannot distinguish between an issue causing 1 percent of defects and one causing 80 percent. Teams must screen candidates and validate surviving factors with objective data before designing corrective actions.
How is a Pareto chart used alongside a fishbone diagram?: Teams often generate a Pareto chart before drawing a fishbone diagram to isolate which defect category accounts for the majority of process losses. Following fishbone brainstorming and empirical data collection, Pareto analysis helps prioritize which confirmed causal branches contribute to the highest volume of failures.

Sources and notes

Kaoru Ishikawa, Guide to Quality Control (1968) — The method and its six cause categories.
Kumah et al., Global Journal on Quality and Safety in Healthcare 7(2):85–87 (2024) — The weakness in the peer-reviewed literature: the tool surfaces irrelevant causes alongside relevant ones.
