Spaghetti Diagram

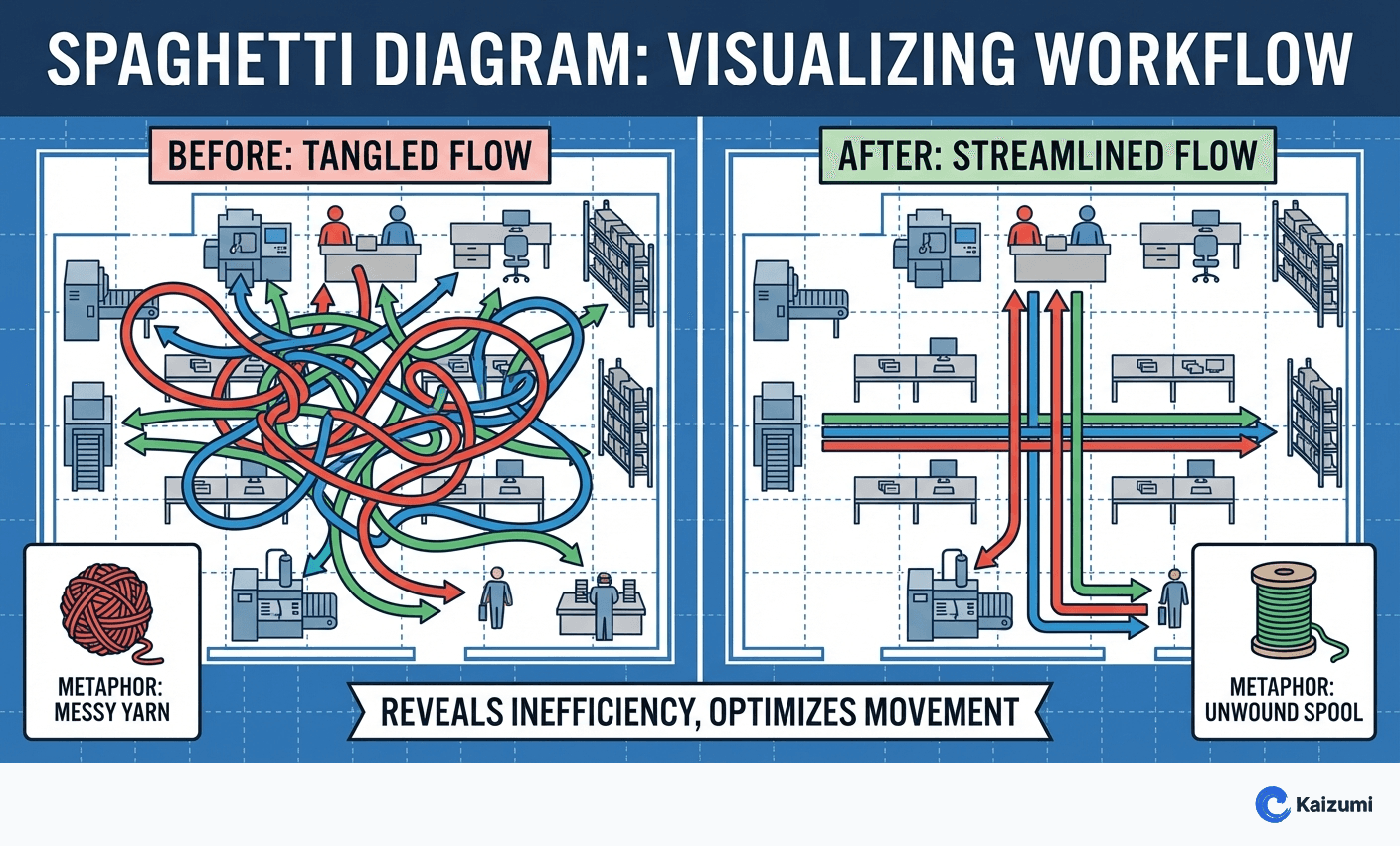

A spaghetti diagram is a visual mapping method that traces the exact physical path taken by a person, product, or document through a workspace over a specific observation period. By plotting continuous movement onto a scaled floor plan, practitioners make invisible motion visible and quantify physical transit distances. In lean manufacturing, these diagrams identify structural layout inefficiencies, excessive travel, and backtracking, demonstrating that movement waste stems from facility design rather than operator behavior. They provide an empirical baseline for continuous improvement initiatives.

0/6 explored

Key facts

Primary function: Make invisible motion visible
Data collection method: Direct observation during a gemba walk
Core lean wastes addressed: Human motion and material transportation (muda)
Common tracking subjects: Operators, materials, documents, and multi-actor teams
Key layout patterns analyzed: Backtracking, centralized hub traps, and point-to-point path crossing

By Matthew Savas — Founder of Kaizumi. Reviewed 30 August 2026.

A spaghetti diagram is a visual mapping method that traces the exact physical path taken by a person, product, or document through a workspace over a specific observation period. By plotting every move onto a scaled layout, the resulting lines expose layout inefficiencies, backtracking, and excessive transit. The method demonstrates that movement waste is a property of the workspace design rather than worker behavior. Within lean manufacturing, unnecessary movement constitutes muda, split between the waste of human motion and the waste of material transportation. By establishing a factual record of physical journeys, teams can identify structural flaws in floor layouts, machine placement, and material storage locations.

Purpose and core principles

The primary function of a spaghetti diagram is to make invisible motion visible. In routine operations, workers and materials frequently traverse floor space in fragmented increments. Because these individual trips may take only seconds or minutes each, the cumulative time and physical exertion remain unmeasured without structured tracking.

Spaghetti diagrams operate on several fundamental principles:

Direct observation: Data collection relies on witnessing actual work at the workstation during a gemba walk, rather than relying on standard operating procedures, architectural schematics, or worker recollections.
Physical layout attribution: The analysis attributes excessive walking and transport to the physical design of the work environment, equipment placement, and tooling locations, rather than individual operator efficiency.
Continuous path logging: Every deviation, retrieval step, and return transit is documented without smoothing or idealizing the path.
Total distance quantification: The plotted lines are converted into total linear distance and time metrics to establish an empirical baseline for future improvements.

When organizations analyze work areas exclusively through process flowcharts, they see the sequence of tasks but miss physical geography. The spaghetti diagram fills this gap by coupling operational sequences with geometric reality.

How to create a spaghetti diagram

Constructing a spaghetti diagram relies on disciplined, real-time observation rather than estimation:

Obtain or draw a scaled floor plan: Secure an accurate layout of the target area, including machine boundaries, workbenches, storage racks, tooling stations, waste bins, and aisleways. An inaccurate base layout distorts distance calculations and path intersections.
Define the observation scope and subject: Select a single person, product batch, or administrative file to follow. Establish a clear observation window, such as one complete manufacturing cycle, a specific production batch, or a set duration of time.
Trace every movement in real time: Stand in a position that offers an unobstructed view of the area without interfering with the process. Follow the subject continuously, drawing a continuous line that mirrors every physical step taken onto the layout sheet. Use arrows along the lines to designate the direction of travel. When using software or a digital Spaghetti diagram tool, record the coordinate points or sequential nodes as the movements occur.
Quantify the results and identify stopping points: Count the total number of trips, record the reasons for transit at each destination, and calculate the total distance traveled. To calculate total walking distance, multiply the measured line segments by the layout scale factor, or measure the actual floor distances using a measuring wheel. To connect the travel distance to cycle efficiency, follow the protocol outlined in the guide on How to do a time study in manufacturing.

Types of tracking

Spaghetti diagrams can track different entities depending on the problem under investigation.

Operator motion tracking

Operator tracking follows a single worker throughout a production cycle or shift. This approach identifies ergonomic burdens, repeated trips to shared tool cribs, searches for missing components, and travel between decoupled machines. It exposes how poor layout forces operators to act as material handlers rather than value-adding fabricators.

Material and product transit tracking

Material tracking follows a single part or container of parts from raw material delivery through finished goods storage. This application highlights unnecessary transit between non-adjacent process steps, temporary staging areas, remote quality inspection rooms, and redundant queue points. Long material paths correlate with higher risks of part damage, increased work-in-progress inventory, and prolonged lead times.

Information and document flow tracking

In administrative and transactional environments, spaghetti diagrams follow paper files, batch records, sign-off folders, or physical samples across an office, hospital, or laboratory floor. This tracking exposes long distances between interconnected processing desks, handoff delays across department boundaries, and unnecessary trips to central printers or approval stations.

Multi-actor tracking

When multiple operators share a common workspace, simultaneous tracking using different colors for each worker illustrates path overlap, congestion, and safety risks. Multi-actor diagrams demonstrate how operators cross paths, block one another at shared workstations, or create bottlenecks at central machinery.

Analyzing transit paths and movement waste

Once the physical paths are plotted, the diagram is analyzed for recurring structural defects.

Backtracking and loop patterns

Backtracking occurs when an operator or part travels back and forth along the same path to complete sequential steps. This indicates that the sequence of physical workstations does not match the chronological sequence of production. Correcting this pattern requires rearranging equipment into sequential order so that work advances progressively without reversing direction.

Centralized hub traps

A common pattern in spaghetti diagrams is the star or hub pattern, where numerous lines radiate from a central workstation toward a remote storage rack, supervisor desk, inspection table, or tool crib. This pattern proves that essential equipment or supplies have been placed outside the point of use.

Point-to-point path crossing

High densities of crossing lines indicate intersecting workflow streams. Intersecting paths introduce collision hazards, generate physical congestion in aisles, and create transport delays when material handlers must yield right-of-way to other moving equipment.

Worked example: Machining bay layout redesign

An industrial study of a machining bay demonstrates how spaghetti diagramming identifies and eliminates structural transit waste.

Initial observation and baseline measurement

A continuous observation was conducted on a single operator using the standard method: follow one person; trace every path.

The parameters and findings of the initial state were:

Observed subject: One machinist
Observation duration: One hour
Initial metrics: 9 trips away from the workbench totaling 410 meters
Shift projection: Multiplying the one-hour total of 410 meters across an eight-hour shift indicated approximately 3.3 kilometers of walking per shift
Worst offender: Tool crib trips, which accounted for 5 of the 9 trips

During the one-hour study, the machinist walked to a central tool crib located 23 meters away from the primary milling machine five separate times to retrieve specific cutting inserts, collets, and measuring gauges. The remaining 4 trips were distributed between a distant raw stock shelf, a scrap bin, and a deburring table.

Root cause analysis and corrective layout design

The diagram showed that the operator spent substantial active working time walking rather than machining parts. The core issue was not operator pacing, but the distance between the machine and the tooling storage.

The corrective principle applied was: move tools and parts, not people.

The facility implemented the following layout changes:

Installed a point-of-use tooling cabinet directly beside the milling machine containing the complete tooling suite for scheduled jobs.
Positioned a raw material staging cart adjacent to the machine infeed.
Mounted deburring tools and a dedicated scrap bin within arm's reach of the operator's primary work area.

Post-relayout measurement

Following the implementation of the new layout, an identical one-hour observation was conducted under matching production requirements:

Observed subject: One machinist
Observation duration: One hour
Improved metrics: 2 trips away from the workbench totaling 28 meters
Shift projection: Approximately 0.2 kilometers of walking per shift
Net reduction: A 382-meter reduction per hour, eliminating roughly 3.1 kilometers of walking per shift

By moving the storage locations to the point of use, 7 trips were eliminated entirely, and the remaining 2 trips were shortened. The operator recovered non-value-adding walking time and redirected it into machining operations.

Relationship to other lean tools

The spaghetti diagram is rarely used in isolation; it functions as an input and diagnostic tool alongside other operational improvement frameworks.

Value stream mapping

While value stream mapping documents the high-level flow of information and materials across an entire production facility or enterprise, it does not capture floor-level spatial inefficiencies. The spaghetti diagram serves as a micro-level tool to investigate individual process boxes within a value stream map where cycle times or changeover times are prolonged due to physical transit.

5S workplace organization

The 5S methodology relies on organizing the immediate workspace so that tools and materials are stored in standard, labeled locations near their point of application. A spaghetti diagram conducted before a 5S event highlights which tools are accessed most frequently and must be placed within the primary reach zone, as opposed to items that can be stored farther away.

Cellular manufacturing

A spaghetti diagram is the primary analytical justification for transitioning from a functional process layout to cellular manufacturing. In a process layout, identical machines are grouped by department, forcing parts and workers to travel hundreds of meters between operations. A cellular design rearranges disparate machines into tight U-shaped or sequential configurations. A spaghetti diagram drawn for a cellular layout shows short, linear, non-overlapping paths.

Best practices and execution pitfalls

To ensure accuracy and utility, practitioners follow defined observational standards while avoiding common procedural errors.

Best practices

Record timestamps: Write time markers along the path at major intervals to correlate travel segments with specific production steps.
Segment by operation type: Use distinct line patterns or colors to differentiate value-adding movements from defect corrections, tooling retrievals, and material handling.
Involve the observed operator: Review the finished diagram with the worker immediately after the observation period to verify that the path represents typical operational conditions.
Measure before and after: Always generate a matching diagram following layout modifications to verify that travel distance has decreased and that new bottlenecks have not formed.

Common pitfalls

Drawing from memory: Creating a diagram based on how work is assumed to occur produces idealized layouts that omit non-standard movements, workarounds, and search time.
Tracking multiple subjects on a single sheet without separation: Combining multiple workers or parts on one drawing without color coding or clear labeling makes the diagram unreadable.
Averaging distinct processes: Tracing multiple different part numbers on a single sheet obscures the root causes of movement unique to individual product variants.
Ignoring micro-motion: Focusing exclusively on long walks across the plant floor while ignoring repetitive short-distance bending, reaching, and turning around an unorganized workbench misses significant ergonomic and motion waste.

Frequently asked questions

How does a spaghetti diagram differ from a process flowchart or value stream map?: A process flowchart documents the chronological sequence of tasks, and a value stream map tracks high-level material and information flow across a facility, but neither captures physical floor geography. A spaghetti diagram plots the actual physical path of an operator, product, or document directly onto a scaled layout. This links operational sequences with geometric distance to expose spatial layout flaws that standard flowcharts conceal.
How do you calculate total transit distance from a spaghetti diagram?: Total transit distance is calculated by measuring the drawn line segments and multiplying them by the floor plan layout scale factor. Alternatively, practitioners measure the physical walking path directly on the floor using a measuring wheel. The resulting distance can then be multiplied across an entire shift to project cumulative travel metrics.
What do star patterns and crossing lines indicate on a spaghetti diagram?: A star or hub pattern occurs when transit lines radiate outward from a central machine, revealing that necessary tools, materials, or scrap bins are located outside the point of use. High densities of intersecting lines show crossing workflow streams in the facility. These crossing paths identify physical congestion in aisles, transport bottlenecks, and collision hazards.
Can a spaghetti diagram track multiple workers at the same time?: Multiple operators sharing a common workspace can be tracked simultaneously by using distinct colors or line patterns for each person. This multi-actor tracking highlights shared bottlenecks, path overlap, and zones where workers physically obstruct one another at central machines. Attempting to track multiple subjects on a single sheet without distinct color coding makes the diagram unreadable.
Why must a spaghetti diagram be drawn during live observation rather than from memory?: Drawing a diagram from memory produces an idealized layout that omits non-standard movements, part searches, and informal workarounds. Live tracking during a gemba walk records the unsmoothed, continuous path as steps occur in real time. Direct observation guarantees that the recorded transit distances and layout issues reflect physical reality rather than assumed operational routines.
