One-Piece Flow

One-piece flow, also known as single-piece flow or continuous flow, is a lean manufacturing method where products advance through production steps one unit at a time without accumulating work-in-process inventory. By immediately transferring parts between successive operations, it eliminates queue times, dramatically shortens manufacturing lead times, exposes defects almost instantly, and reduces work-in-process to the number of active workstations. Operating successfully in continuous flow requires cellular manufacturing layouts, balanced cycle times, high equipment reliability, and strict standard work procedures.

Preparing the production line…

0/5 explored
First part
—
WIP
0 / 3
Defect found
—
The same six parts
Both runs start with these six identical parts. The machines and their cycle times never change—only the transfer rule does.
The same three operations
Cut, drill, and inspect each take 10 seconds. Flow does not speed up a machine; it removes the waiting between machines.
Inventory between processes
Batch transfer fills a six-slot queue before the next operation starts. One-piece flow hands each completed part forward immediately.
First-part lead time
The first good part finishes in 30 seconds with flow and 130 seconds in a batch—100 seconds sooner with identical work content.
Defect found at inspection
Part 2 is drilled incorrectly. Inspection finds it at 40 seconds in flow, but not until 140 seconds in the batch run.

Key facts

Alternative names
Single-piece flow, continuous flow
Core mechanic
Reducing transfer batch size to a single unit
Opposite approach
Batch-and-queue production
Typical cell layout
U-shaped or L-shaped
Key prerequisites
Line balancing, takt time alignment, standard work

By Matthew Savas — Founder of Kaizumi. Reviewed 30 August 2026.

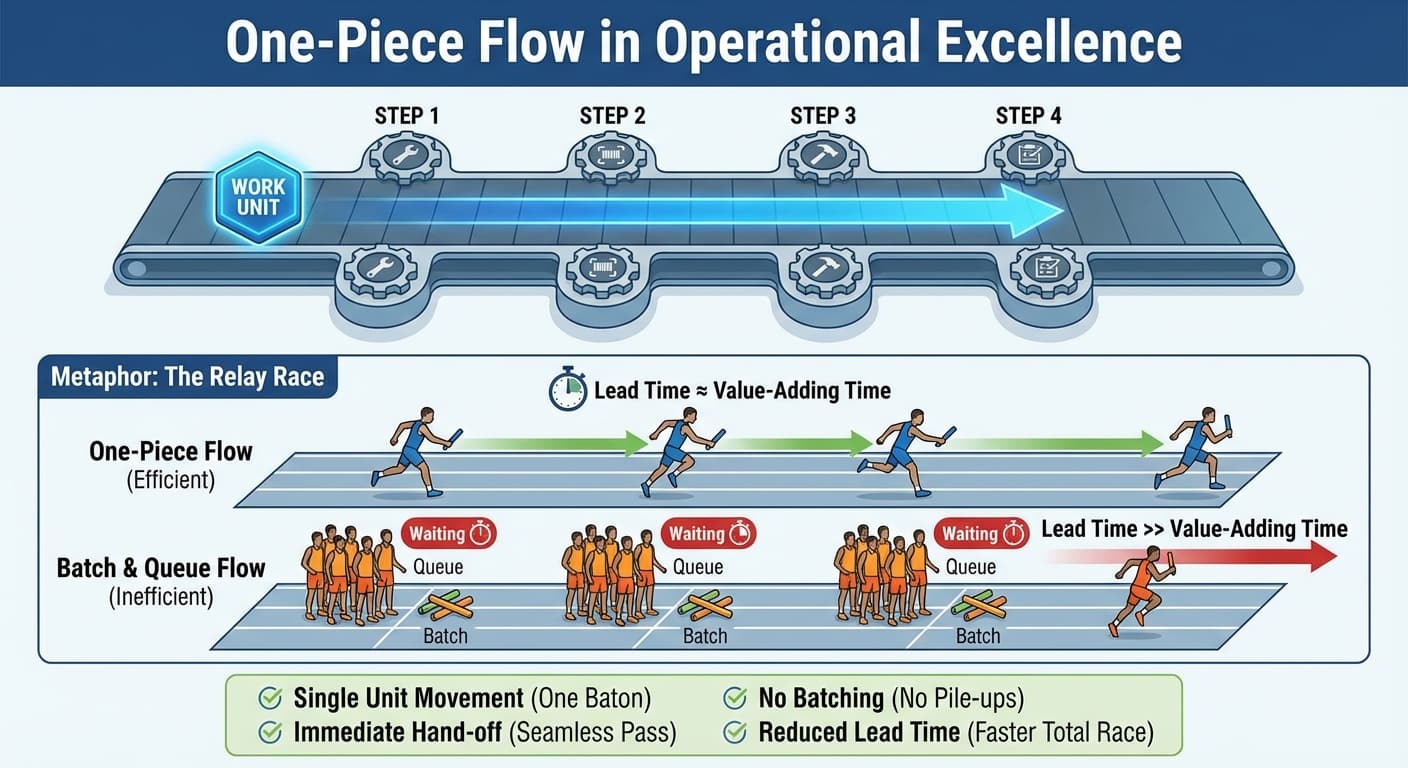

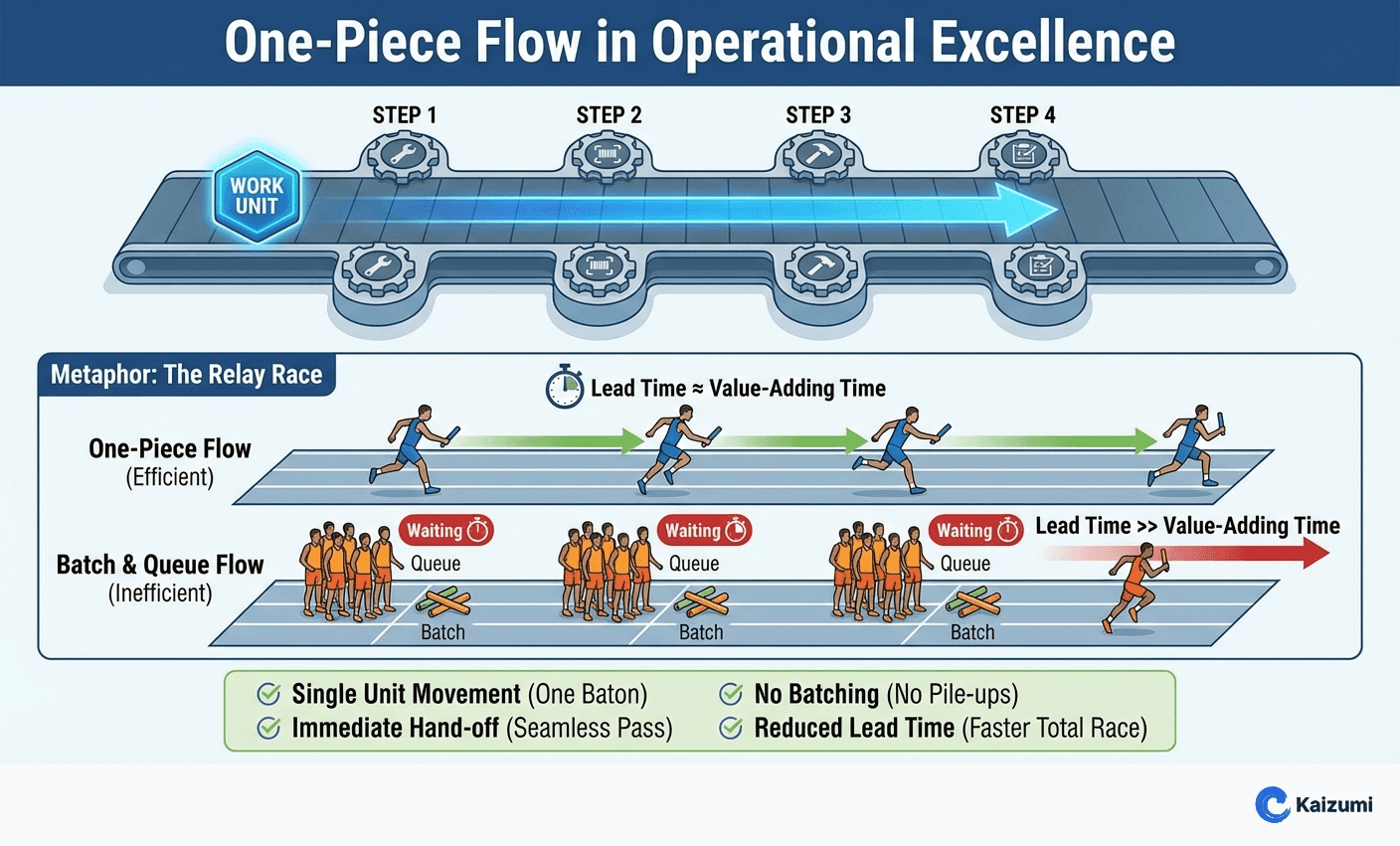

One-piece flow, also known as single-piece flow or continuous flow, is a production method in lean manufacturing where products move through manufacturing steps one unit at a time without accumulating work-in-process between successive operations. In this system, each workstation completes its required processing on a single item and immediately passes that item to the subsequent downstream workstation. One-piece flow stands in direct contrast to batch-and-queue production, in which items are processed in groups and held in waiting queues between process stages until the entire batch is completed.

Core principles and mechanics

The fundamental mechanic of one-piece flow is the reduction of the transfer batch size to a single unit. In traditional batch manufacturing, both the production batch size and the transfer batch size are typically large, often determined by machine capacity, tooling changeover durations, or departmental layouts. As a result, individual components spend the majority of their manufacturing lead time waiting in queues, either waiting for the remaining units of a batch to finish an operation, or waiting in queue before the next workstation begins processing.

One-piece flow moves each unit to the next process as soon as its current operation is complete. In a process with six parts and three ten-second operations, single-piece transfer finishes the first part in 30 seconds rather than 130 seconds under batch processing, reduces peak work-in-process from six parts to three, and exposes defects at 40 rather than 140 seconds. The dramatic reduction in lead time comes entirely from eliminating waiting time rather than increasing operating speed.

Operating in continuous flow requires tightly synchronized handoffs between sequential steps. For an item to advance immediately from one station to the next, the downstream process must be available to accept work, the upstream process must complete tasks within an agreed timeframe, and the transport mechanism must be immediate. This synchronization connects operations physically and procedurally, creating a continuous line or work cell where parts advance at a steady cadence.

Try it yourself

Loading…

Quantitative comparison with batch processing

A standard manufacturing scenario demonstrates the measurable operational differences between batch processing and one-piece flow. Consider a production sequence consisting of six parts passing sequentially through three operations: cutting, drilling, and inspection. Each operation requires exactly 10 seconds of processing time per part.

Batch processing sequence

Under a standard batch processing system with a batch size of six units, all six parts must complete an operation before any part moves to the next operation:

  1. Cutting operation: The operator cuts Part 1 through Part 6 in sequence. At 10 seconds per part, the cutting machine completes the entire batch in 60 seconds. Part 1 finishes cutting at 10 seconds but waits 50 seconds while Parts 2 through 6 are cut.
  2. Drilling operation: The full batch of six parts transfers to the drilling station at 60 seconds. The operator drills Part 1 through Part 6. At 10 seconds per part, the drilling operation requires another 60 seconds, concluding at 120 seconds.
  3. Inspection operation: The batch transfers to the inspection station at 120 seconds. The inspector examines Part 1 from 120 seconds to 130 seconds.

By the time the first finished part completes the third operation, 130 seconds have elapsed. The final part in the batch completes inspection at 180 seconds. Throughout this process, peak work-in-process inventory reaches the full batch size of six parts.

If Part 2 contains a hidden defect caused by an incorrect drill setting, this error occurs during the drilling operation between 70 and 80 seconds. However, because parts are inspected only after the entire batch finishes drilling, the inspector examines Part 1 at 130 seconds and Part 2 at 140 seconds. The defect is discovered at 140 seconds, after the drilling operation has already processed Parts 3, 4, 5, and 6 with the potential same error.

One-piece flow sequence

Under a one-piece flow configuration, the transfer batch size is reduced to one unit:

  1. At 0 seconds, Part 1 enters cutting.
  2. Part 1 finishes cutting at 10 seconds and moves straight to drilling, while Part 2 begins cutting.
  3. Part 1 moves to inspection at 20 seconds and finishes production at 30 seconds.
  4. Part 2 enters cutting at 10 seconds, finishes cutting and moves to drilling at 20 seconds, finishes drilling and moves to inspection at 30 seconds, and completes production at 40 seconds.
  5. Successive parts exit the system every 10 seconds thereafter, with the sixth part completing production at 80 seconds.

In one-piece flow, Part 2 reaches inspection and reveals the defect at 40 seconds. At this point, only Part 3 has been processed through the drill, limiting potential scrap or rework to a maximum of two units rather than the entire batch of six. Peak work-in-process inventory is reduced from six parts to three parts, as exactly one part occupies each of the three active workstations simultaneously.

Prerequisites for one-piece flow

Achieving stable continuous flow requires specific operational preconditions. Because single-piece transfer eliminates buffer inventories between steps, disruptions at any single station immediately affect adjacent stations. Organizations must establish high process stability before transitioning to one-piece flow.

  • Cellular manufacturing: Workstations and equipment must be arranged in close physical proximity, typically in U-shaped or L-shaped configurations, following the sequence of processing steps. This minimizes material travel distances and enables single operators to oversee multiple consecutive operations.
  • Line balancing: The work content across all operations in the flow line must be divided evenly. If one station requires 15 seconds while neighboring stations require 10 seconds, inventory will accumulate in front of the slower operation, interrupting continuous movement.
  • Takt time alignment: The pace of production must be calibrated to customer demand rate, calculated by dividing available operating time by customer order quantity. Production stages are configured so that the line pace matches this rate.
  • Cycle time stability: The time required for an operator or machine to complete one cycle of work must remain consistent and be slightly less than or equal to takt time. High variation in work duration disrupts the flow cadence.
  • Standard work: Operational procedures, operator movement paths, and standard work-in-process quantities must be formally defined and followed to ensure repeatable execution and prevent process-induced delays.
  • Rapid changeovers: Equipment must be capable of switching between different part types with minimal downtime, utilizing techniques such as single-minute exchange of dies. Long setup times force facilities to produce in large batches to amortize downtime.
  • Equipment reliability: Machines must operate without unscheduled breakdowns during production hours. Total productive maintenance practices are implemented to prevent machine halts that would stop the entire line.
  • In-line quality assurance: Quality verification must be integrated directly into the workstation using mistake-proofing devices, inspection sensors, and autonomation mechanisms that halt the process immediately upon detecting an anomaly.

Operational benefits

Implementing one-piece flow generates measurable improvements across operational performance metrics.

Lead time reduction

Manufacturing lead time represents total time elapsed from the start of processing until the completion of a finished product. By eliminating queuing time between operations, one-piece flow reduces lead time to the sum of the actual value-adding processing times plus minor handling intervals. Shorter lead times allow manufacturing facilities to respond rapidly to changing customer orders, shorten delivery promises, and operate with smaller finished goods reserves.

Work-in-process reduction

In batch manufacturing, substantial capital is tied up in stationary material between processes. One-piece flow caps work-in-process inventory to the number of active workstations plus designated standard work-in-process holders. This reduction lowers working capital requirements, frees up factory floor space, and decreases the material handling equipment needed to store and transport inventory containers.

Immediate defect identification

When production occurs in large lots, an error introduced at an early operation may not be discovered until the entire batch arrives at a downstream inspection step hours or days later. By that time, multiple subsequent batches may have incurred the same defect. Under one-piece flow, every part is verified by the next operator or an automated check within one cycle time, providing immediate feedback and halting the production of defective units.

Floor space optimization

Eliminating intermediate staging areas, pallet racks, and work-in-process storage buffers allows manufacturing cells to occupy a fraction of the floor space required by batch departments. Compacting the workspace reduces the physical distance operators must walk, shortens conveyance times, and enables higher output density per square meter of facility space.

Implementation challenges and failure modes

While one-piece flow delivers operational efficiencies, it increases the sensitivity of the production system to local disruptions:

  • Station interdependence: When buffers between workstations are removed, any downtime caused by equipment failure, component shortages, or operator absence stops all upstream and downstream stations on the line.
  • Workload imbalance: In operations with high task variation, such as manual assembly with diverse product options, maintaining balanced cycle times across all stations is difficult, leading to temporary blockages or operator idle time.
  • Tooling and setup constraints: If specific process steps require dedicated machinery with lengthy heating, cooling, or chemical treatment cycles, integrating those steps into continuous single-unit flow requires specialized small-scale equipment rather than centralized batch equipment.
  • Operator training requirements: Operators in continuous flow cells often cross-train across multiple machine types and assembly tasks, requiring higher skill levels and flexible work allocation compared to specialized single-machine operators.

Transition strategies

Facilities transitioning from batch-and-queue systems to one-piece flow generally follow a structured progression:

  1. Value stream mapping: Map current material and information flows to identify high-inventory accumulation points, long lead times, and disconnected operations.
  2. Lot size reduction: Systematically reduce batch sizes from hundreds of units down to dozens, then to small containers, exposing process imbalances and equipment unreliability in a controlled manner.
  3. Cell design and layout: Relocate separated equipment into co-located manufacturing cells where parts can be passed by hand or short gravity chutes from one station to the next.
  4. Process leveling and balancing: Reallocate task elements among operators until each workstation's cycle time aligns with the line cadence.
  5. Standard work institutionalization: Document the precise sequence of operations, standard cycle times, and standard inventory holding points, ensuring all shifts adhere to the continuous flow discipline.

Frequently asked questions

Why does one-piece flow detect defects earlier than batch manufacturing?
In batch production, an error introduced at an early stage remains undetected while the rest of the lot finishes processing, which can ruin dozens or hundreds of items before inspection. One-piece flow transfers each part immediately to the downstream step, allowing operators or automated sensors to identify problems within a single cycle. For example, in a three-step process with six parts, an error in the second part is discovered at 40 seconds instead of 140 seconds, limiting rework to at most two units rather than the entire batch.
What operational risks occur when eliminating buffer inventory between workstations?
Removing buffer inventory makes workstations entirely interdependent, meaning any disruption halts the entire flow line. If a single station experiences equipment breakdown, part shortages, or operator absence, all upstream and downstream stations must stop immediately. High task variation or uneven work times can also trigger immediate bottlenecks and force operators to sit idle.
How are lengthy processes like heating or chemical treatment integrated into one-piece flow?
Traditional heating, cooling, or chemical treatment operations rely on large centralized equipment that requires bulk batches, which disrupts continuous part movement. To incorporate these processes into one-piece flow, facilities replace large centralized vats or ovens with small-scale equipment built directly into the cell layout. This dedicated tooling allows parts to pass through thermal or chemical stages one unit at a time without waiting for a full lot to gather.
What happens when cycle times are unbalanced along a continuous flow line?
When cycle times vary between stations, work-in-process begins to pile up immediately ahead of the slowest operation. For instance, if one station takes 15 seconds while adjacent stations take 10 seconds, parts accumulate before the 15-second station while downstream operators are starved of work. Maintaining continuous movement requires managers to rebalance task elements across operators until each station's cycle time aligns with the target line cadence.
What is the standard sequence for transitioning a plant from batch production to one-piece flow?
Facilities typically begin by creating a value stream map to pinpoint inventory accumulation points and disconnected processes. Teams then gradually shrink production lot sizes from hundreds of units down to small containers, which safely surfaces machine downtime and line imbalances. Finally, equipment is rearranged into compact manufacturing cells, operations are balanced to a uniform cadence, and standard work procedures are formalized across all shifts.
