Visual Management

Visual management organizes workplace environments using physical cues such as shadow boards, andon lights, floor markings, and kanban cards, to make operational status immediately apparent. By translating complex operational data into direct physical signals at the point of work, visual systems allow anyone to distinguish normal from abnormal conditions at a glance without consulting reports or asking supervisors. This approach eliminates information gaps, reduces motion and waiting waste, and drives rapid problem-solving by making performance standards and deviations instantly recognizable across operations.

0/5 explored

Key facts

Core purpose: Distinguish normal from abnormal conditions at a glance
System maturity levels: Visual displays, visual controls, visual guarantees
Foundational methodology: 5S workplace organization
Signaling tools: Andon lights, kanban cards, and production boards
Governance tools: Kamishibai audit boards and obeya rooms

By Matthew Savas — Founder of Kaizumi. Reviewed 1 September 2026.

Visual management organizes work environments so anyone can distinguish normal from abnormal conditions at a glance. Visual tools include production boards, shadow boards, andon lights, labeled material cards, and painted floor boundaries. These physical cues convey system status, standards, and required actions without written reports or meetings. Foundational systems like 5S maintain the discipline needed for visual controls to remain effective. The core test of any visual management system is whether operational status is clear at a glance without asking a supervisor or operator. When executed correctly, physical markers immediately communicate what work is being done, whether production is ahead of or behind schedule, which standard operating procedures apply, and where specific abnormalities exist.

Core principles and operational function

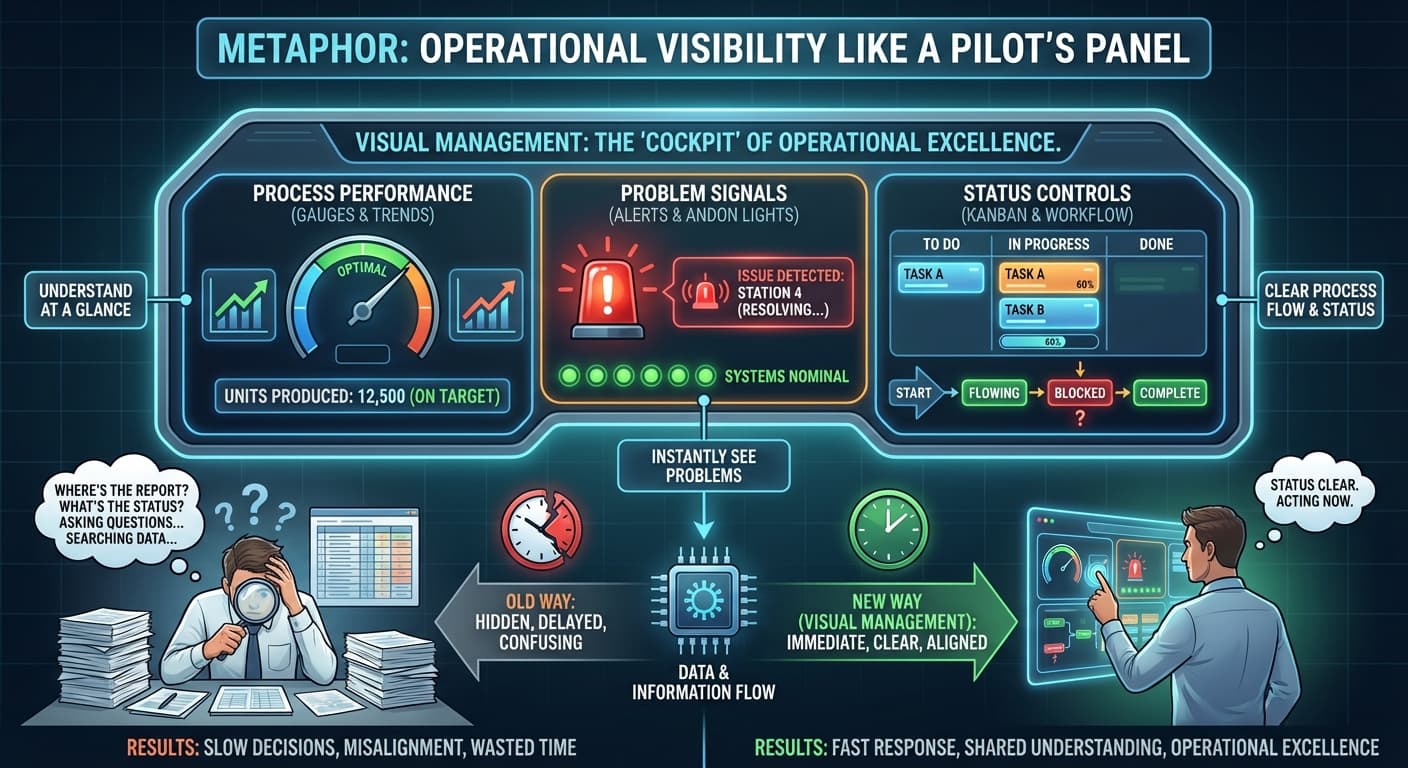

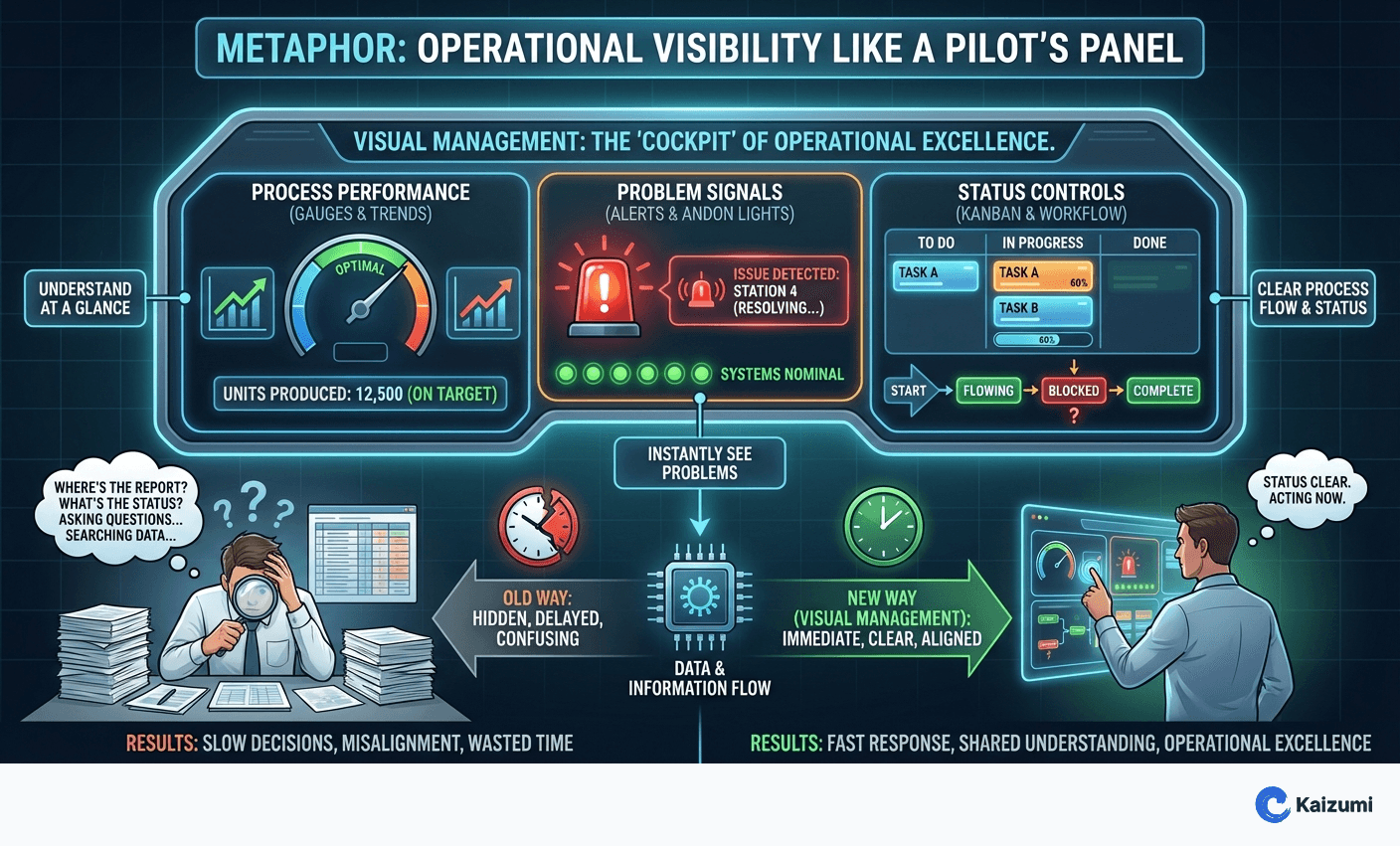

Visual management transforms intangible operational data into direct physical signals. In standard manufacturing and administrative environments, information about process health, cycle times, quality levels, and inventory volumes is frequently stored inside computer databases, management logs, or specialized software. This separation between the execution of work and the recording of work creates operational delays. Frontline personnel cannot easily determine whether their current pace matches customer demand, nor can support staff readily identify emerging disruptions.

Visual systems eliminate these information gaps by placing physical indicators directly at the point of work. The primary objective is establishing an environment that is self-explaining, self-ordering, self-regulating, and self-improving. In a self-explaining environment, labels, directional signs, and process maps define the flow of materials and people. In a self-ordering environment, every tool, part, and document has a marked physical location that specifies its home position and maximum quantity. In a self-regulating environment, visual signals dictate when work begins, when replenishment occurs, and when production must pause due to a defect. In a self-improving environment, deviations from standards become obvious immediately, prompting root-cause problem solving rather than delayed batch reviews.

By removing the need for verbal inquiries, physical searching, and administrative status meetings, visual controls reduce motion waste, waiting waste, and overproduction. A manager walking through a facility should be able to evaluate the operational condition of any production cell within five seconds without consulting a digital terminal or speaking to an operator.

Levels of visual systems

Visual systems generally evolve through three distinct levels of maturity and control:

Visual displays: Passive systems that share information and metrics without directing specific human behavior or enforcing standards. Examples include plant performance charts, safety policies, facility maps, and historical quality graphs. While informative, visual displays rely entirely on human initiative to interpret data and take corrective steps.
Visual controls: Active systems that guide behavior, signal operational limits, and identify deviations in real time. Examples include painted floor boundaries, shadow boards, kanban cards, and color-coded gauge limits. Visual controls make adherence to standards simple and non-conformance immediately visible.
Visual guarantees: Hard controls and mistake-proofing mechanisms that physically prevent errors, enforce standards, or halt equipment when abnormal conditions occur. Examples include physical fixtures that accept parts in only one orientation, automatic shutoff limit switches, and interlocked machine guards.

Advancing from visual displays to visual controls and visual guarantees increases the operational reliability of the production system by reducing reliance on memory and subjective judgment.

Workplace organization and foundational controls

Foundational systems like 5S establish the baseline discipline necessary for these controls to succeed, as detailed in the 5S visual guide. Workplace organization standards: Practices like red-tagging during 5S events visually flag unneeded items for evaluation and removal, maintaining an uncluttered workspace. Built on 5S workplace organization steps, visual management establishes clear standards across floors, walls, and storage areas.

Floor controls define physical boundaries and transit lanes:

Yellow tape defines primary pedestrian walkways, transit paths, and general work cell perimeters.
Red tape defines areas reserved for non-conforming materials, scrap containers, and quarantine zones.
Blue and green tape identify staging zones for incoming raw materials and completed finished goods awaiting transport.
Dashed lines indicate dynamic zones, such as areas required for equipment door swings, maintenance access clearances, or forklift turning radii.

Wall controls present operating parameters and tool management standards:

Production boards display hourly targets, actual output counts, and variance explanations.
Shadow boards display the exact silhouette of every hand tool assigned to a station. One empty outline shows a tool is in use, missing, or broken, eliminating the need to search drawers or toolboxes.
Andon stack lights mounted above equipment communicate operating status across the production floor.

Material cues govern work-in-process and component staging:

Cards on totes state contents and quantity, specifying part numbers, batch IDs, point of consumption, and standard pack sizes.
Floor address labels identify the exact storage address corresponding to the destination on material delivery manifests.
Minimum and maximum height markers on racking define allowable inventory buffers directly on physical shelves.

Production tracking and takt alignment

Visual production tracking links real-time operational output directly to customer demand rates. Rather than reviewing shift output at the end of the day, teams track progress incrementally throughout the working period using hour-by-hour production boards.

Hourly tracking boards are positioned at the exit of each manufacturing process. These boards record:

The planned production target for each hour, calculated from the takt time.
The actual quantity of units produced during that specific hour.
The cumulative difference between planned and actual output.
Specific operational reasons for any negative variance, recorded at the moment the disruption occurs.

When output falls behind schedule, the variance provides immediate feedback to the team leader. The gap between actual production and the planned state is evaluated against the takt image, which represents the visual model of how production must flow to satisfy customer requirements at standard cadence. If a process requires one finished unit every two minutes, the visual board displays whether the unit for that two-minute interval has passed the final inspection point. Any accumulation of parts between stations or any empty station indicates a line balance failure or machine interruption that requires immediate intervention.

Play it yourself

Loading…

Signaling and escalation tools

When abnormal conditions occur, visual signaling mechanisms communicate the issue across the facility without requiring personal intervention or telephone calls.

Andon systems provide direct status signaling through overhead light stacks and audio tones:

Green lights indicate that the machine or cell is operating under standard conditions at normal cycle time.
Yellow lights indicate that an operator has identified an emerging condition, such as a material shortage, tool wear, or minor process variance, and has requested team leader assistance without stopping the line.
Red lights indicate that a safety hazard, critical defect, or machine breakdown has occurred, resulting in an immediate line stoppage.

Kanban signaling establishes pull production by visually triggering material replenishment. Kanban signals operate using cards, dedicated floor squares, or empty return bins. In a physical kanban loop:

A container of parts holds a kanban card that details the part number, supplier location, consumption point, and pack size.
When the operator consumes the first piece from the container, the kanban card is removed and placed into a collection post.
The physical presence of the card in the collection post authorizes the material handler to pull replacement stock from the upstream warehouse or production cell.
If no kanban card is present, upstream processes are prohibited from producing inventory. This visual rule prevents overproduction waste and limits total inventory to the number of authorized kanban circulating in the loop.

Standardized auditing and governance

Visual management requires continuous verification to prevent physical standards from degrading over time. Two structured tools support visual governance: kamishibai boards and obeya rooms.

Kamishibai is a visual audit system that utilizes physical cards to schedule and verify standard work adherence:

A board contains rows of cards corresponding to daily, weekly, and monthly audit tasks.
Each card has two sides with contrasting colors, typically green on one side and red on the reverse side.
The green side lists the specific visual standard or process step to be audited, such as verifying torque tool calibration or inspecting floor boundary tape integrity.
The auditor selects the card, performs the direct physical check, and returns the card to the board with the opposite side facing outward to indicate completion.
Unperformed audits or identified standard violations remain visually obvious to supervisors during floor walks.

Obeya rooms consolidate operational metrics, project schedules, and problem-solving tracking onto physical walls in a dedicated management area:

Strategy walls display high-level corporate objectives, annual targets, and key performance indicators.
Operational performance walls show daily throughput, quality scrap rates, equipment efficiency, and safety incident counts.
Problem-solving walls display active root-cause analysis worksheets, fishbone diagrams, and countermeasure implementation timelines.
Resource allocation walls track project milestones and cross-functional team assignments.

Management teams conduct standing meetings inside the obeya room, using the wall displays directly rather than reviewing digital presentations. This ensures that executive decisions are based on the same real-time visual standards applied across the operating floor.

Design standards and implementation rules

Effective visual management requires strict standardization of visual cues across an entire facility. If different departments use conflicting color conventions or labeling standards, the visual system creates confusion rather than clarity.

Standard guidelines for visual design include:

Limiting color palettes to standard operational definitions. Standard conventions assign green to normal operating conditions, yellow to warning states or transit paths, red to defects or safety hazards, and blue to general information or work-in-process staging.
Placing visual cues directly at eye level or on the immediate surface where work occurs, ensuring they fall within the natural line of sight of operators and material handlers.
Minimizing text and maximizing standardized symbols, directional arrows, and clear numeric codes to enable fast comprehension across diverse workforces.
Establishing clear ownership and maintenance responsibilities for every visual board, ensuring that outdated charts, faded floor tape, and illegible labels are replaced immediately.

Visual management fails when it degenerates into visual clutter. When too many signs, notices, and banners cover walls and workstations, the human brain filters out the signals, rendering the controls ineffective. Visual management systems must contain only the minimum necessary information required to control the process, expose abnormalities, and prompt corrective action.

Frequently asked questions

What is the difference between a visual display, a visual control, and a visual guarantee?: Visual displays are passive tools, such as facility maps or historical performance charts, that present information without directing human behavior. Visual controls actively guide actions and highlight operational boundaries in real time, using tools like kanban cards, shadow boards, and painted floor markers. Visual guarantees are physical mistake-proofing devices or automated interlocks that actively prevent errors or halt equipment when an abnormal condition occurs.
How does 5S support visual management?: The 5S methodology establishes the baseline discipline and organization required for visual indicators to remain functional over time. Techniques such as red-tagging remove unneeded items from the workspace, eliminating unnecessary physical obstacles. Without this organized foundation, visual cues become obscured by clutter and workers cannot quickly detect process abnormalities.
How do hour-by-hour production boards differ from standard shift reports?: Standard shift reports review output retroactively after work has ended, delaying operational adjustments until the next working period. Hour-by-hour tracking boards record actual output incrementally against takt time targets throughout the shift. By logging production gaps and their root causes the moment they occur, these boards trigger immediate intervention before daily schedules fall behind.
What do standard floor tape colors indicate in visual workplace design?: Yellow tape defines primary pedestrian walkways, transit lanes, and general cell boundaries, while red tape identifies scrap storage, quarantine areas, and non-conforming materials. Blue and green tape mark dedicated staging spaces for incoming raw parts and completed goods awaiting transport. Dashed lines indicate dynamic zones that must remain clear for machine access doors, maintenance, or forklift turning paths.
Why does visual clutter cause a visual management system to fail?: Covering walls and workstations with excessive notices, banners, and charts overwhelms workers, causing the human brain to filter out the environment. This sensory fatigue makes critical warnings, operational limits, and emerging defects invisible in practice. To remain effective, visual management must be restricted to the minimum necessary cues required to govern a process and trigger corrective action.

Terms

5S Andon Kamishibai Kanban Obeya Red Tagging Takt Time
