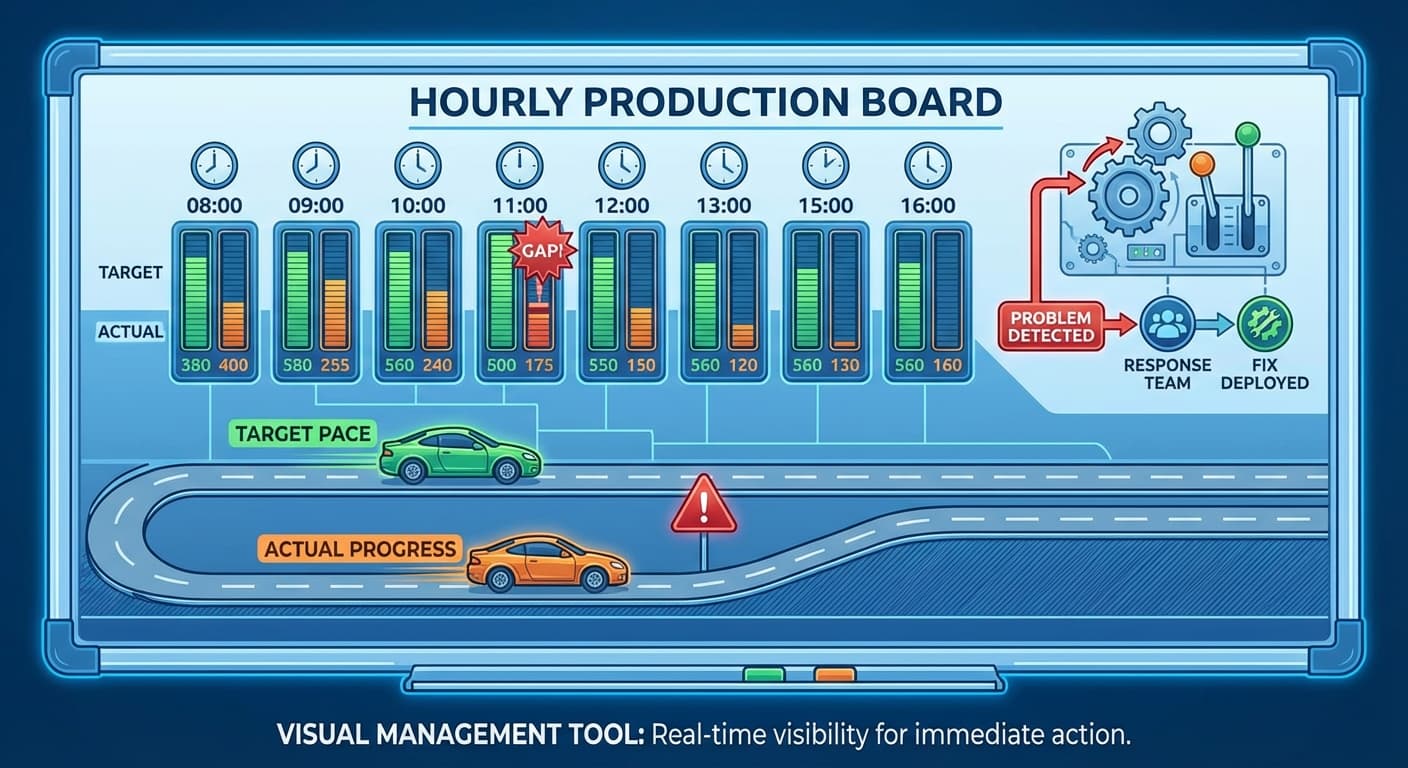

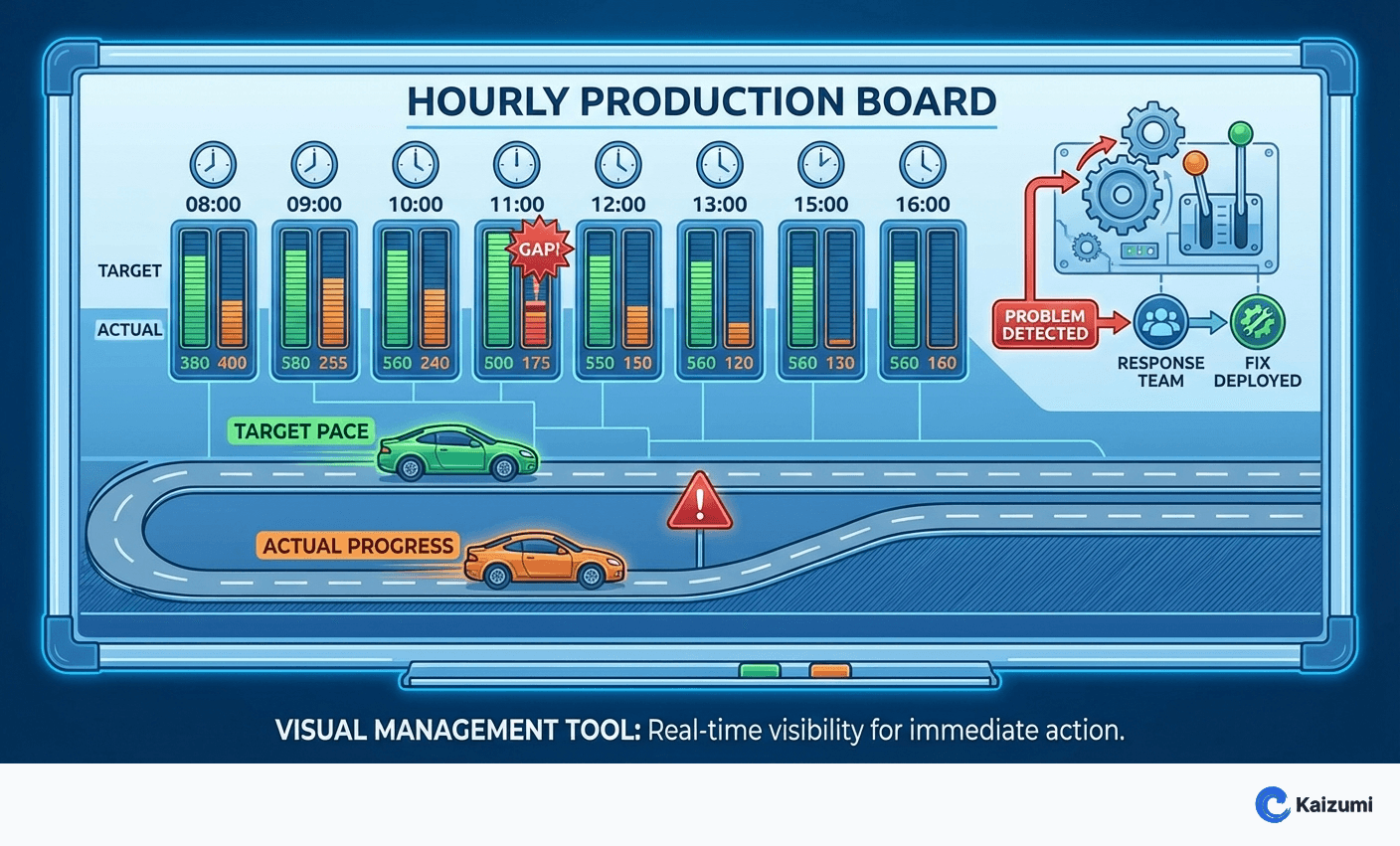

Hourly Production Board

The board operates on three core principles:

• High-frequency feedback: Breaking the daily production schedule into hourly targets exposes micro-stoppages, line imbalances, component shortages, and process abnormalities before they compound into major end-of-shift deficits.
• Operator ownership at the source: Production data is recorded manually by the team, by hand, at the line. Manual entry ensures that operators and team leaders actively process the variance between planned and actual output rather than passively observing an automated display.
• Mandatory cause and countermeasure logging: A production deficit without an identified root cause and immediate response provides no operational value. The board requires an explicit record of what occurred and what action was taken during that specific hour.

When an hourly target is missed, the board triggers support systems such as an andon escalation, alerting maintenance, quality, or material handling teams to provide immediate assistance. Detailed reference guides, such as The hour-by-hour board, explained, outline how these basic tracking principles align with broader continuous improvement frameworks.

To determine the hourly target, divide the available production seconds in one hour by the takt time. For example, a target pace of 90 units per hour corresponds to producing one unit every 40 seconds. If an operating line has 3,600 available seconds in an hour, dividing 3,600 seconds by a takt time of 40 seconds yields an hourly planned output of exactly 90 units.

Engineering and production planning teams often utilize a dedicated Takt time calculator to balance cycle times and calculate theoretical line output across varying shift lengths and break structures. When line balance efficiency or planned changeovers reduce available operating minutes within a specific hour, the hourly planned output on the board is adjusted downward to reflect the true planned capacity for that specific period.

The board serves as the primary focal point during a gemba walk, where plant managers, engineers, and area supervisors walk the shop floor to observe processes and support operational teams. Instead of asking generic questions about shift performance, leaders examine the hourly board to review current pace, observe recurring failure modes, and verify that countermeasures have been executed.

Furthermore, updating, reviewing, and responding to the board are core elements of leader standard work. Team leaders are scheduled to audit the board at the top of every hour, confirm that entries are written by hand at the line, and coordinate immediate containment for any hour marked below target.

To ensure continuous adherence to the board's standard operating procedure, supervisors often use a kamishibai card audit system. These visual audit cards prompt leaders to verify specific board disciplines, such as checking whether root causes are clearly documented, whether countermeasures are realistic, and whether cumulative variance calculations are mathematically accurate.

At the end of each shift or production day, data from the hourly production boards is collected for Pareto analysis. By aggregating the specific reasons logged across multiple shifts, continuous improvement teams can prioritize engineering changes, preventative maintenance routines, and supplier quality interventions based on actual line-side downtime data.

Why are manual whiteboards preferred over automated digital screens for hourly production tracking?

Manual hand-written tracking requires operators and leaders to actively engage with production numbers directly at the line rather than passively observing a monitor. Physically recording the output prompts immediate verbal communication between workers and supervisors the moment an abnormality occurs. This hands-on routine reinforces direct psychological ownership of the work center's operating performance.

How is the planned output target calculated for an hourly production board?

The hourly target is calculated by dividing the available production seconds in one operating hour by the line's takt time. For example, dividing 3,600 available seconds by a takt time of 40 seconds yields a planned output of 90 units per hour. When planned breaks or changeovers reduce available operating minutes during a specific hour, the planned target for that discrete block is adjusted downward.

What must be recorded on an hourly production board when an hourly output target is missed?

Whenever actual output falls below the planned target, the team must document the specific physical abnormality and equipment cause rather than a generic symptom. The board also requires an immediate countermeasure detailing the exact corrective action taken during that hour to restore standard flow. Finally, a team leader, supervisor, or technician must provide a sign-off or initials to confirm the response.

What is the difference between hourly variance and cumulative variance on an hourly production board?

Hourly variance measures the gap between planned output and actual output completed within an individual one-hour time block. Cumulative variance tracks the net running total of planned units against actual units produced from the start of the shift up to the current hour. Tracking both figures shows whether an output shortfall was an isolated event or part of a compounding deficit across the shift.

How is hourly production board data utilized after a shift ends?

At the end of each shift, the causes and downtime events logged on the boards are collected for Pareto analysis. Continuous improvement teams aggregate these recorded abnormalities across multiple shifts to identify recurring failure modes. This historical record allows engineering, maintenance, and quality departments to prioritize permanent corrective actions based on line-side operational data.
